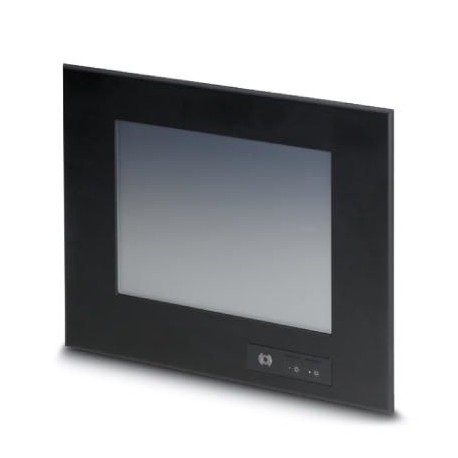

TP 10T/M 211 2701843 PHOENIX CONTACT Touch panel with 26.4 cm (10.4″) graphics-capable TFT display, 65,535 c..
TP 10T/M 211 2701843 PHOENIX CONTACT Touch panel with 26.4 cm (10.4″) graphics-capable TFT display, 65,535 c..
Touch panel with 26.4 cm (10.4″) graphics-capable TFT display, 65,535 colors, 640 x 480 pixels, 1 x Ethernet, 2 x USB, and integrated runtime of the Visu+ visualization software. ABS, DNV, and LR approved
Liên hệ:
Key Commercial Data
| Orderkey | 2701843 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 111 (C-8-2015) |
| GTIN | 4046356891943 |
| Weight per Piece (excluding packing) | 2,929.000 g |
| Custom tariff number | 84714100 |
| Country of origin | DE (Germany) |
Note
| Utilization restriction | EMC: class A product, see manufacturer’s declaration in the download area |
|---|
Dimensions
| External dimension, width | 328 mm |
|---|---|
| External dimension, height | 265 mm |
| External dimension, depth | 5 mm |
| Note regarding external dimension | Dimensions of the front plate |
| Installation dimension, width | 303 mm |
| Installation dimension, height | 238 mm |
| Installation dimension, depth | 57 mm |
| Note regarding installation dimension | Mounting cutout, depth with bus if bus system present in the device |
Display
| Display | 26.4 cm/10.4″ TFT |
|---|---|
| Brightness | 350 cd/m², typical (adjustable) |
| Screen resolution | 640 x 480 Pixel(s) (VGA) |
| Backlighting | LED |
| Display backlight MTBF | 50000 h |
| Touch technology | Resistive industrial touch screen |
| Colors | 65536 colors |
| Reading angle left | 80 ° |
| Reading angle right | 80 ° |
| Reading angle top | 65 ° |
| Reading angle bottom | 80 ° |
Computer data
| Processor | Xscale®PXA320, 806 MHz |
|---|---|
| Operating system | Windows®CE 6.0 |
| User software | Visu+ |
| AX OPC Server | |
| RAM | 128 MB SDRAM |
| 1 MB SRAM | |
| Mass storage | NAND-Flash, 1 GB |
| Network | 1 x Ethernet (10/100 Mbps), RJ45 |
| Interfaces | 2x USB host 1.1 |
| Bus system | without |
| Optional interfaces | CF slot |
General
| Material front plate | Aluminum (black anodized) |
|---|---|
| Housing material | Steel sheet, zinc-plated |
| Mounting type | Front installation |
| Weight | 2200 g |
