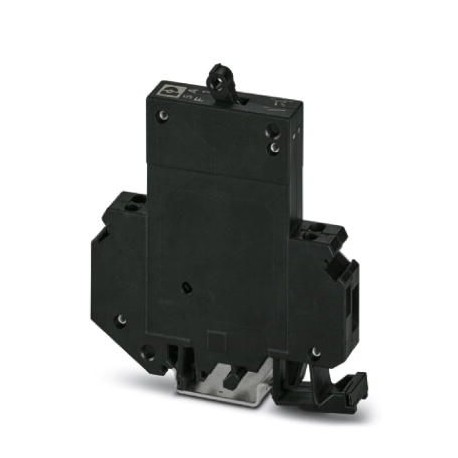

Key Commercial Data
| Orderkey | 0914138 |
|---|---|
| Packing unit | 6 pc |
| Catalog page | Page 282 (CL-2002) |
| GTIN | 4017918008819 |
| Weight per Piece (excluding packing) | 64.970 g |
| Custom tariff number | 85362010 |
| Country of origin | DE (Germany) |
General
| Number of levels | 2 |
|---|---|
| Number of connections | 4 |
| Mounting type | DIN rail: 35 mm |
| Color | black |
| Number of positions | 1 |
| Overvoltage category_GRP | II |
| Insulating material | PA66 |
| Flammability rating according to UL 94 | V-2 |
Electrical data
| Fuse type | Automatic device |
|---|---|
| Rated surge voltage | 2.5 kV |
| Rated voltage | 65 V DC |
| Rated current IN | 5 A |
| Insulation resistance Riso | > 100 MΩ (500 V DC) |
| Rated short-circuit switching capacity Icn | 2500 A (32 V DC) |
| Short-circuit switching capacity Ik | 2000 A (UL 1077: 65 V DC) |
| Dielectric strength | 3000 V AC (Actuation area) |
| 3000 V AC (Main to auxiliary circuit) | |
| Switching cycles, max. | 10000 (At 1 x In, inductive) |
| Degree of pollution | 2 |
| Overvoltage category_GRP | II |
| Insulating material group | II |
Ambient conditions
| Degree of protection | IP30 (Actuation area) |
|---|---|
| IP20 (Connection area) | |
| Ambient temperature (operation) | -30 °C … 60 °C |
Connection data
| Conductor cross section solid min. | 0.2 mm² |
|---|---|
| Conductor cross section solid max. | 6 mm² |
| Conductor cross section flexible min. | 0.2 mm² |
| Conductor cross section flexible max. | 4 mm² |
| Conductor cross section AWG min. | 24 |
| Conductor cross section AWG max. | 10 |
| Conductor cross section flexible, with ferrule without plastic sleeve min. | 0.25 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve max. | 4 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve min. | 0.25 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve max. | 2.5 mm² |
| 2 conductors with same cross section, solid min. | 0.2 mm² |
| 2 conductors with same cross section, solid max. | 0.75 mm² |
| 2 conductors with same cross section, stranded min. | 0.2 mm² |
| 2 conductors with same cross section, stranded max. | 0.75 mm² |
| 2 conductors with same cross section, stranded, ferrules without plastic sleeve, min. | 0.25 mm² |
| 2 conductors with same cross section, stranded, ferrules without plastic sleeve, max. | 1 mm² |
| 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min. | 0.5 mm² |
| 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max. | 2.5 mm² |
| Connection method | Screw connection |
| Stripping length | 12 mm |
| Internal cylindrical gage | A3 |
| Screw thread | M3 |
| Tightening torque, min | 0.6 Nm |
| Tightening torque max | 0.8 Nm |
