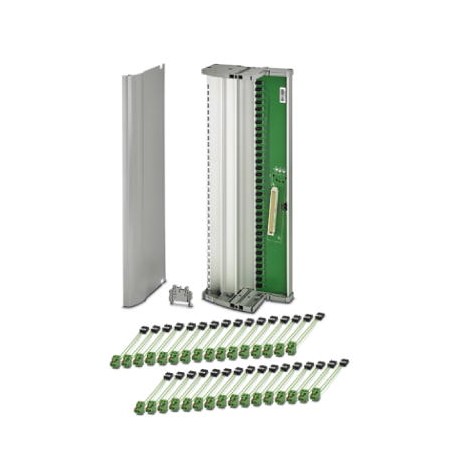

Termination Carrier for connecting 32 MACX Analog Ex i solenoid drivers to digital output cards of the HIMA HIMax controller, via one C96 connector, 96-pos. Suitable for the HIMax X-DO 32 01 card, without a redundant feed-in option
Liên hệ:
Key Commercial Data
| Orderkey | 2908752 |
|---|---|
| Packing unit | 1 |
| GTIN | 4055626328249 |
| Custom tariff number | 85366990 |
Note
| Utilization restriction | EMC: class A product, see manufacturer’s declaration in the download area |
|---|
General
| Nominal voltage UN | < 50 V DC (Per signal/channel) |
|---|---|
| Max. permissible current | 0.5 A (Signal/channel) |
Connection 2
| Connection name | Controller level |
|---|---|
| Connection in acc. with standard | IEC 60603-2 |
| Connection method | Pin strip |
| Type | C |
| Number of connections | 1 |
| Number of positions | 96 |
Ambient conditions
| Ambient temperature (operation) | -20 °C … 60 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C … 80 °C |
| Permissible humidity (operation) | 5 % … 95 % (non-condensing) |
| Shock | 15g, according to IEC 60068-2-27 |
| Vibration (operation) | 2g, according to IEC 60068-2-6 |
Standards and Regulations
| Designation | Air clearances and creepage distances |
|---|---|
| Standards/regulations | DIN EN 50178 |
| Rated insulation voltage | 30 V |
| Rated surge voltage | 0.5 kV |
| Insulation | Functional insulation |
| Pollution degree | 2 |
| Overvoltage category | II |
| Designation | Directive 2014/35/EU (EMV) |
| Standards/regulations | EN 6100-6-2 |
| EN 6100-6-4 | |
| Designation | Directive 2014/34/EU (ATEX) |
| Standards/regulations | EN 60079-0 |
| EN 60079-7 | |
| EN 60079-11 | |
| Shock | 15g, according to IEC 60068-2-27 |
| Vibration (operation) | 2g, according to IEC 60068-2-6 |
| ATEX | II 3 G Ex ec IIC T4 Gc X |
| UL, USA/Canada | UL 61010 Listed |
| Class I, Div. 2, Groups A, B, C, D T4 | |
| Class I, Zone 2, Group IIC |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer’s declaration” |
Articles in set
Cable set TC-C-PTB3-SC-SET1 2905216
Cable set for TC-MACX-MCR-PTB power and fault signaling module (Order No. 2904673), for use on the Termination Carrier for signal conditioners from the MACX Analog Ex series.
Cable set TC-C-MAX2-SC-31320000 2902425
Cable set for signal transmission on the Termination Carrier for modules from the MACX Analog Ex series. Connection of terminal points 3.1 and 3.2 (signal transmission) to the signal PCB.
Classifications
[email protected]
| [email protected] 4.0 | 27250313 |
|---|---|
| [email protected] 4.1 | 27250313 |
| [email protected] 5.0 | 27250313 |
| [email protected] 5.1 | 27250313 |
| [email protected] 7.0 | 27141152 |
| [email protected] 8.0 | 27141152 |
| [email protected] 9.0 | 27141152 |
General
| Nominal voltage UN | < 50 V DC (Per signal/channel) |
|---|---|
| Max. permissible current | 0.5 A (Signal/channel) |
Cable set for TC-MACX-MCR-PTB power and fault signaling module (Order No. 2904673), for use on the Termination Carrier for signal conditioners from the MACX Analog Ex series.
Cable set for TC-MACX-MCR-PTB power and fault signaling module (Order No. 2904673), for use on the Termination Carrier for signal conditioners from the MACX Analog Ex series.
Cable set for signal transmission on the Termination Carrier for modules from the MACX Analog Ex series. Connection of terminal points 3.1 and 3.2 (signal transmission) to the signal PCB.
Cable set for signal transmission on the Termination Carrier for modules from the MACX Analog Ex series. Connection of terminal points 3.1 and 3.2 (signal transmission) to the signal PCB.
