TC-XC96-AI32-EX2-PRS-HIMAX01 2908732 PHOENIX CONTACT Termination Carrier for redundantly connecting 32 MACX ..
TC-XC96-AI32-EX2-PRS-HIMAX01 2908732 PHOENIX CONTACT Termination Carrier for redundantly connecting 32 MACX ..

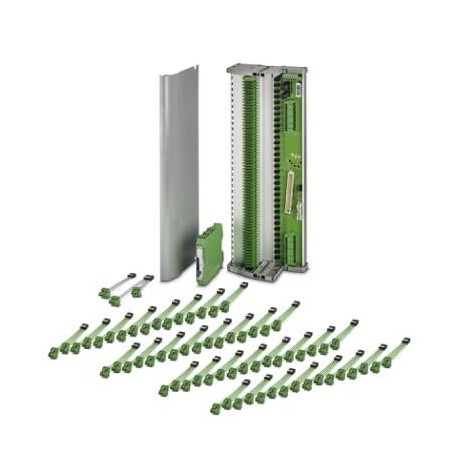

Termination Carrier for redundantly connecting 32 MACX Analog Ex i signal conditioners with double output to analog input cards of the HIMA HIMax controller, via one C96 connector, 96-pos. Suitable for the HIMax X-AI 32 01 card, with HART multiplexer connection
Liên hệ:
Key Commercial Data
| Orderkey | 2908732 |
|---|---|
| Packing unit | 1 |
| GTIN | 4055626327617 |
| Custom tariff number | 85366990 |
Note
| Utilization restriction | EMC: class A product, see manufacturer’s declaration in the download area |
|---|
General
| Nominal voltage UN | < 50 V DC (Per signal/channel) |
|---|---|
| Max. permissible current | 1 A (Signal/channel) |
Supply
| Designation | Device supply |
|---|---|
| Input voltage | 24 V DC |
| Input voltage range | 19.2 V DC … 30 V DC |
| Input current | ≤ 2 A |
| Redundant supply | yes, decoupled from diodes |
| Polarization and surge protection | Yes |
| Output name | Switching output |
| Contact type | 1 N/C contact (alarm = open) |
| Maximum switching voltage | 30 V DC (2 A) |
| Fuse | 2x 3.15 A Slow-blow (exchangeable) |
| Status display | 2x green LEDs (PWR1 and PWR2) |
Connection 1
| Connection name | Power supply |
|---|---|
| Connection method | Screw connection |
| Stripping length | 7 mm |
| Number of connections | 1 |
| Number of positions | 6 |
| Conductor cross section solid | 0.75 mm² … 2.5 mm² |
| Conductor cross section flexible | 0.75 mm² … 2.5 mm² |
| Conductor cross section AWG | 18 … 14 |
Connection 2
| Connection name | Controller level |
|---|---|
| Connection in acc. with standard | IEC 60603-2 |
| Connection method | Pin strip |
| Type | C |
| Number of connections | 1 |
| Number of positions | 96 |
Ambient conditions
| Ambient temperature (operation) | -20 °C … 60 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C … 80 °C |
| Permissible humidity (operation) | 5 % … 95 % (non-condensing) |
| Shock | 15g, according to IEC 60068-2-27 |
| Vibration (operation) | 2g, according to IEC 60068-2-6 |
Standards and Regulations
| Designation | Air clearances and creepage distances |
|---|---|
| Standards/regulations | DIN EN 50178 |
| Rated insulation voltage | 30 V |
| Rated surge voltage | 0.5 kV |
| Insulation | Basic insulation |
| Pollution degree | 2 |
| Overvoltage category | II |
| Designation | Directive 2014/35/EU (EMV) |
| Standards/regulations | EN 6100-6-2 |
| EN 6100-6-4 | |
| Designation | Directive 2014/35/EU (EMV) |
| Standards/regulations | EN 60079-0 |
| EN 60079-7 | |
| EN 60079-11 | |
| Shock | 15g, according to IEC 60068-2-27 |
| Vibration (operation) | 2g, according to IEC 60068-2-6 |
| ATEX | II 3 G Ex ec IIC T4 Gc X |
| UL, USA/Canada | Class I, Div. 2, Groups A, B, C, D T4 |
| Class I, Zone 2, Group IIC |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer’s declaration” |
Articles in set
Power and error message module TC-MACX-MCR-PTB 2904673
Power and fault signaling module with screw connection, only for use on the Termination Carrier, excluding corresponding DIN rail bus connector
Cable set TC-C-PTB3-SC-SET1 2905216
Cable set for TC-MACX-MCR-PTB power and fault signaling module (Order No. 2904673), for use on the Termination Carrier for signal conditioners from the MACX Analog Ex series.
Cable set TC-C-MAX2-SC-31320000 2902425
Cable set for signal transmission on the Termination Carrier for modules from the MACX Analog Ex series. Connection of terminal points 3.1 and 3.2 (signal transmission) to the signal PCB.
DIN rail bus connectors ME 17,5 TBUS 1,5/ 5-ST-3,81 GN 2709561
DIN rail connector for DIN rail mounting. Universal for TBUS housing. Gold-plated contacts, 5-pos.
DIN rail bus connectors ME 6,2 TBUS-2 1,5/5-ST-3,81 GN 2869728
DIN rail connector for DIN rail mounting. Universal for TBUS housing. Gold-plated contacts, 5-pos.
Classifications
[email protected]
| [email protected] 4.0 | 27250313 |
|---|---|
| [email protected] 4.1 | 27250313 |
| [email protected] 5.0 | 27250313 |
| [email protected] 5.1 | 27250313 |
| [email protected] 7.0 | 27141152 |
| [email protected] 8.0 | 27141152 |
| [email protected] 9.0 | 27141152 |
