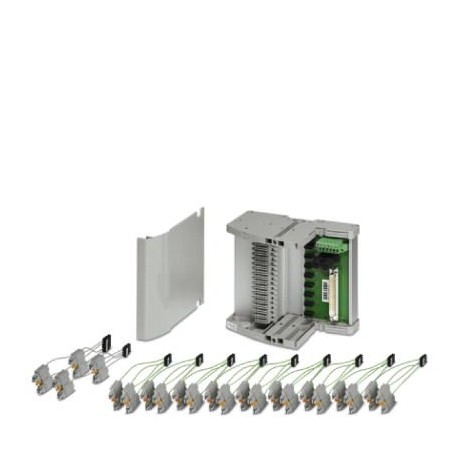

TC-D37SUB-ADIO16-MP-P-UNI 2906639 PHOENIX CONTACT Module carrier

TC-D37SUB-ADIO16-MP-P-UNI 2906639 PHOENIX CONTACT Module carrier

TC-D37SUB-ADIO16-MP-P-UNI 2906639 PHOENIX CONTACT Module carrier

Module carrier

sản phẩm chính hãng, MỚI 100% CHƯA SỬ DỤNG
SẢN PHẨM LUÔN ĐƯỢC KIỂM TRA TRƯỚC KHI XUẤT KHO
BẢO HÀNH 12 THÁNG ĐỐI VỚI LỖI CỦA NHÀ SẢN XUẤT / HOẶC THEO CHÍNH SÁCH CỦA SẢN PHẨM DO TRƯỜNG THỊNH PHÂN PHỐI
HỖ TRỢ KỸ THUẬT 24/7
MIỄN PHÍ GIAO HÀNG ĐỐI VỚI CÁC ĐƠN HÀNG TỪ 8,000,000VNĐ

Liên hệ:

SKU: 2906639 Danh mục: INTERFACE Components (IF) Thẻ: 2906639, PHOENIX_CONTACT, TC-D37SUB-ADIO16-MP-P-UNI

Mô tả

Key Commercial Data

Orderkey	2906639
Packing unit	1 pc
Note	Made to Order (non-returnable)
Catalog page	Page 99 (C-5-2017)
GTIN	4055626119977
Weight per Piece (excluding packing)	1,180.000 g
Custom tariff number	85366990
Country of origin	DE (Germany)

General

Nominal voltage U_N	< 30 V DC (Per signal/channel)
Max. permissible current	< 1 A (Signal/channel)
Degree of protection	IP00

Supply

Designation	Power module
Note	Power supply via 2902067 MINI MCR-2-PTB-PT power terminal and 2904508 MINI MCR-2-FM-RC-PT fault signaling module
Input voltage	24 V DC
Input voltage range	19.2 V DC … 30 V DC
Input current	≤ 2 A
Redundant supply	yes, decoupled from diodes
Polarization and surge protection	Yes
Output name	Switching output
Contact type	1 N/C contact (alarm = open)
Maximum switching voltage	30 V DC (50 mA)
Fuse	2x 2.5 A on PCB, slow-blow (replaceable)
Status display	2 x red LED (error)
	2x green LEDs (PWR1 and PWR2)

Connection 1

Connection name	Power supply
Connection method	Screw connection
Stripping length	7 mm
Number of connections	1
Number of positions	6
Conductor cross section solid	0.14 mm² … 2.5 mm²
Conductor cross section flexible	0.14 mm² … 2.5 mm²
Conductor cross section AWG	24 … 12

Connection 2

Connection name	Controller level
Connection method	D-SUB pin strip
Number of connections	1
Number of positions	37

Ambient conditions

Ambient temperature (operation)	-20 °C … 60 °C (Please observe module specifications)
Ambient temperature (storage/transport)	-40 °C … 80 °C
Permissible humidity (operation)	5 % … 95 % (non-condensing)
Shock	15g, according to IEC 60068-2-27
Vibration (operation)	2g, according to IEC 60068-2-6
Maximum altitude	≤ 2000 m

Cable set for signal transmission on the Termination Carrier for modules from the MINI Analog Pro series. Connection of terminal points 5 and 6 of two adjacent MINI Analog Pro modules to the signal PCB via a 4-pos. PTSM connector.

Cable set for MINI MCR-2-PTB-PT power module (Order No. 2902958) and MINI MCR-2-FM-RC-PT fault signaling module (Order No. 2904508), for use on the Termination Carrier for modules from the MINI Analog Pro series.

DIN rail connector (TBUS), 5-pos., for bridging the supply voltage, can be snapped onto NS 35/… DIN rails according to EN 60715
