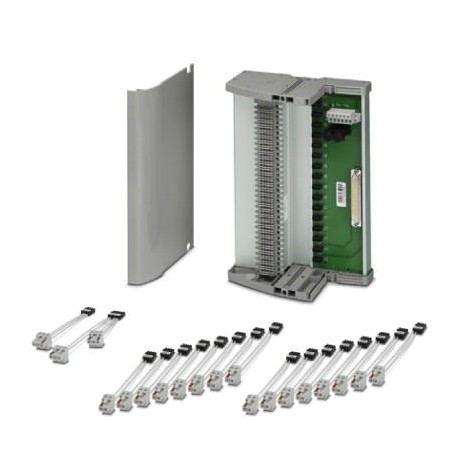

Key Commercial Data
| Orderkey | 2924854 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 165 (C-5-2017) |
| GTIN | 4046356592017 |
| Weight per Piece (excluding packing) | 1,000.000 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
General
| Nominal voltage UN | < 30 V DC (Per signal/channel) |
|---|---|
| Max. permissible current | 1 A (Signal/channel) |
| Color | gray |
| Degree of protection | IP00 |
Supply
| Designation | Power module |
|---|---|
| Note | Power supply via 2904673 TC-MACX-MCR-PTB power supply and error signaling module. |
| Input voltage | 24 V DC |
| Input voltage range | 19.2 V DC … 30 V DC |
| Input current | ≤ 2 A |
| Redundant supply | yes, decoupled from diodes |
| Polarization and surge protection | Yes |
| Output name | Switching output |
| Contact type | 1 N/C contact (alarm = open) |
| Maximum switching voltage | 50 V DC (0.3 A) |
| Fuse | 2x 2.5 A on PCB, slow-blow (replaceable) |
| Status display | 1 x red LED (error) |
| 2x green LEDs (PWR1 and PWR2) |
Connection 1
| Connection name | Power supply |
|---|---|
| Connection method | Screw connection |
| Stripping length | 7 mm |
| Number of connections | 1 |
| Number of positions | 6 |
| Conductor cross section solid | 0.14 mm² … 2.5 mm² |
| Conductor cross section flexible | 0.14 mm² … 2.5 mm² |
| Conductor cross section AWG | 24 … 12 |
Connection 2
| Connection name | Controller level |
|---|---|
| Connection method | D-SUB pin strip |
| Number of connections | 1 |
| Number of positions | 37 |
Ambient conditions
| Ambient temperature (operation) | -20 °C … 60 °C (Please observe module specifications) |
|---|---|
| Ambient temperature (storage/transport) | -40 °C … 80 °C |
| Permissible humidity (operation) | 5 % … 95 % (non-condensing) |
| Shock | 15g, according to IEC 60068-2-27 |
| Vibration (operation) | 2g, according to IEC 60068-2-6 |
| Maximum altitude | ≤ 2000 m |
