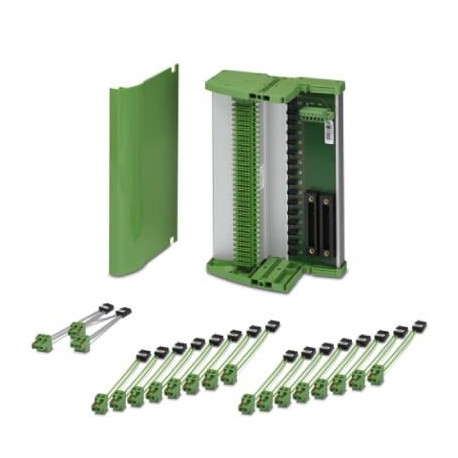

Termination carrier for redundantly connecting 16 MACX Analog Ex i signal conditioners to analog input/output cards of the Yokogawa CS3000 controller, via two KS40 connectors, 40-pos. Suitable for Yokogawa AAI141 and AAI543 cards.
Liên hệ:
Termination carrier for redundantly connecting 16 MACX Analog Ex i signal conditioners to analog input/output cards of the Yokogawa CS3000 controller, via two KS40 connectors, 40-pos. Suitable for Yokogawa AAI141 and AAI543 cards.
Key Commercial Data
| Orderkey | 2902661 |
|---|---|
| Packing unit | 1 |
| GTIN | 4046356670623 |
| Custom tariff number | 85366990 |
General
| Nominal voltage UN | 24 V DC ((19.7 V … 30 V)) |
|---|---|
| Max. permissible current | 800 mA (Signal/channel) |
| Degree of protection | IP00 |
Supply
| Designation | Power module |
|---|---|
| Note | Supply via MACX MCR-PTB (2865625). Supply, decoupled from diodes from both modules. |
| Input voltage | 24 V DC |
| Input voltage range | 19.2 V DC … 30 V DC |
| Redundant supply | yes, decoupled from diodes |
| Polarization and surge protection | Yes |
| Output name | Switching output |
| Contact type | 1 N/C contact (alarm = open) |
| Maximum switching voltage | 50 V DC (0.3 A) |
| Fuse | 5 A Slow-blow (can be exchanged) |
| Status display | 1 x red LED (error) |
| 2x green LEDs (PWR1 and PWR2) |
Connection 1
| Connection name | Power supply |
|---|---|
| Connection method | Screw connection |
| Stripping length | 7 mm |
| Number of connections | 1 |
| Number of positions | 6 |
| Conductor cross section solid | 0.14 mm² … 2.5 mm² |
| Conductor cross section flexible | 0.14 mm² … 2.5 mm² |
| Conductor cross section AWG | 24 … 12 |
Connection 2
| Connection name | Controller level |
|---|---|
| Connection method | Yokogawa KS-compatible |
| Number of connections | 2 |
| Number of positions | 40 |
Ambient conditions
| Ambient temperature (operation) | -20 °C … 60 °C (Please observe module specifications) |
|---|---|
| Ambient temperature (storage/transport) | -40 °C … 80 °C |
| Permissible humidity (operation) | 5 % … 95 % (non-condensing) |
| Shock | 15g, according to IEC 60068-2-27 |
| Vibration (operation) | 2g, according to IEC 60068-2-6 |
| Maximum altitude | ≤ 2000 m |
