For handling objects with flat or slightly curved surfaces.
General
Suction cup shape
Universal
Application
Bag opening/thin paper – slip sheets/film
Material
Silicone (SIL)
Suction cup model
U
Weight
0.025 oz
Volume
0.031 in³

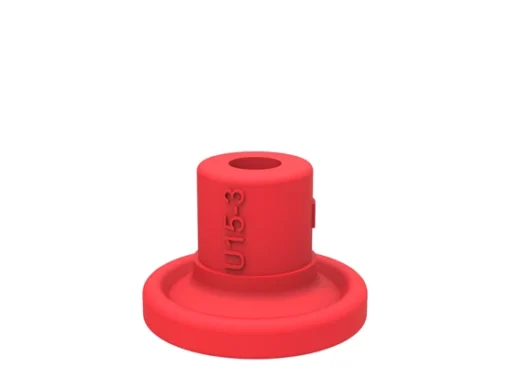

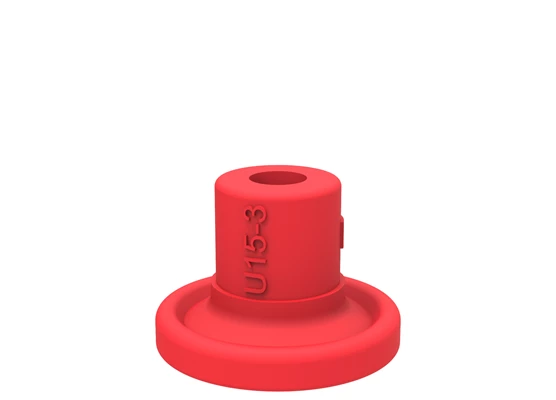

Name
U15
Movement, vertical max.
0.059 in
Curve radius, min.
0.31 in
Fitting option
None
Fitting size
None
Fitting style
None
Fitting type
None
Height
0.45 in
Outer diameter
0.65 in
Performance – lifting forces
U15
5.91 -inHg
17.72 -inHg
26.58 -inHg
0.79 lbf
1.89 lbf
2.47 lbf
0.9 lbf
1.62 lbf
1.82 lbf
Material
Name
Color
Red
Temperature
-40 – 392 °F
Hardness
50 °Shore A
Alcohol
++
Concentrated acids
–
Ethanol
n/a
Hydrolysis
+
Methanol
n/a
Oil
–
Oxidation
+++
Gasoline
–
Wear resistance
++
Weather and ozone
+++
Dimensional drawings
This activity requires login
Please login or register to receive the full benefits of piab.com.
Values specified in the data sheet are tested at:
- Room temperature: (20⁰C [68⁰F] ± 3⁰C [5.5⁰F])
- Standard atmosphere: (101.3 [29.9 inHg] ± 1.0 kPa [0.3 inHg])
- Relative humidity: 0-100%
- Compressed air quality: DIN ISO 8573-1 class 4
