General
Suction cup shape
Bellows
Application
Oily sheet metal
Material
Polyurethane (PU60)
Suction cup model
BXF
Weight
6.98 oz
Volume
17.33 in³
Name

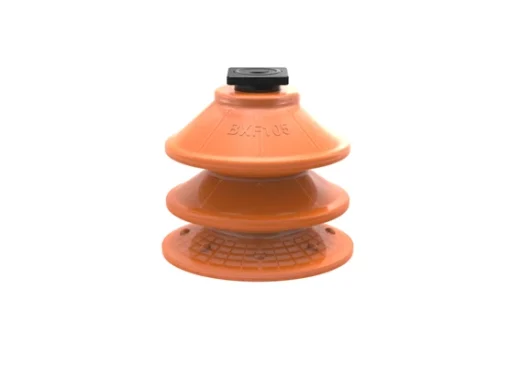

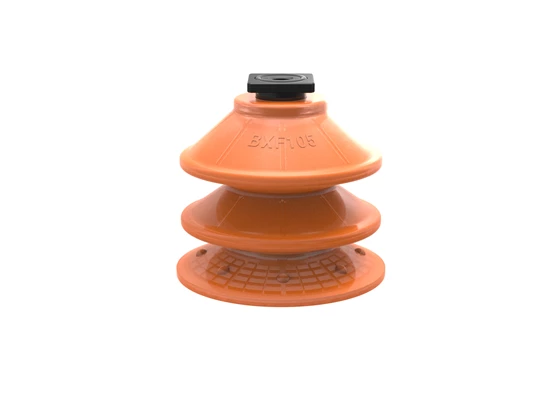

BXF105P Dry metal sheet
Specification
Dry metal sheet
Movement, vertical max.
2.22 in
Curve radius, min.
9.055 in
Name
BXF105P Oily metal sheet
Specification
Oily metal sheet
Material
Al
Fitting option
Filter mesh
Fitting size
None
Fitting style
T-slot
Fitting type
None
Height
3.88 in
Outer diameter, actuated
4.25 in
Outer diameter
4.13 in
Performance – lifting forces
BXF105P Dry metal sheet
17.72 -inHg
26.58 -inHg
48.78 lbf
63.4 lbf
23.61 lbf
25.63 lbf
BXF105P Oily metal sheet
17.72 -inHg
26.58 -inHg
53.5 lbf
70.59 lbf
28.1 lbf
29.00049 lbf
Material
Name
Color
Orange
Temperature
50 – 122 °F
Hardness
60 °Shore A
Alcohol
n/a
Concentrated acids
+
Ethanol
+
Hydrolysis
+
Methanol
–
Oil
+++
Oxidation
–
Gasoline
+
Wear resistance
+++
Weather and ozone
+++
Dimensional drawings
This activity requires login
Please login or register to receive the full benefits of piab.com.
Values specified in the data sheet are tested at:
- Room temperature: (20⁰C [68⁰F] ± 3⁰C [5.5⁰F])
- Standard atmosphere: (101.3 [29.9 inHg] ± 1.0 kPa [0.3 inHg])
- Relative humidity: 0-100%
- Compressed air quality: DIN ISO 8573-1 class 4
