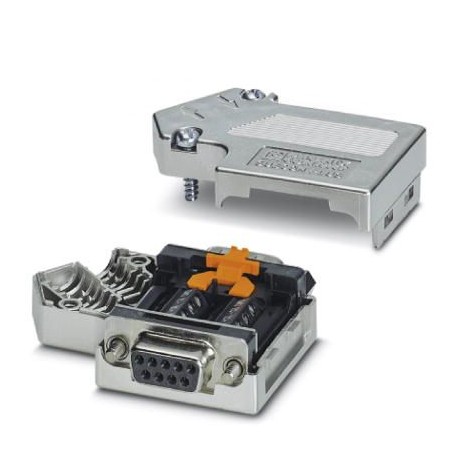

Key Commercial Data
| Orderkey | 2708119 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 376 (C-6-2017) |
| GTIN | 4046356041331 |
| Weight per Piece (excluding packing) | 38.400 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
Dimensions
| Max. cable diameter | 8.4 mm |
|---|---|
| Min. cable diameter | 7.6 mm |
| Width | 16.6 mm |
| Height | 39.4 mm |
| Length | 58 mm |
Ambient conditions
| Ambient temperature (operation) | -20 °C … 75 °C |
|---|---|
| Ambient temperature (storage/transport) | -25 °C … 80 °C |
| Altitude | 5000 m (For restrictions see manufacturer’s declaration) |
| Degree of protection | IP40 |
General
| Nominal voltage UN | 5 V |
|---|---|
| Nominal current IN | 100 mA |
| Bus system | CAN, CANopen, SafetyBus-P |
| Signal | CAN |
| CANopen® | |
| SafetyBUS p | |
| Insertion/withdrawal cycles | > 200 |
| SUBCON fixing screws | 4-40 UNC |
| Tightening torque | 0.4 Nm |
| Housing material | ABS, metal-plated |
| Pin assignment | 2, 3, 7, 9 |
| MTTF | 6706 Years (SN 29500 standard, temperature 25 °C, operating cycle 21 % (5 days a week, 8 hours a day)) |
| 1817 Years (SN 29500 standard, temperature 40 °C, operating cycle 34.25 % (5 days a week, 12 hours a day)) | |
| 155 Years (SN 29500 standard, temperature 40 °C, operating cycle 100 % (7 days a week, 24 hours a day)) |
Connection data
| Connection | D-SUB connection |
|---|---|
| Number of positions | 9 |
| Connection method | D-SUB socket |
| Termination resistor | 120 Ω (Can be connected externally) |
| Connection | PCB connection |
| Connection method | Screw connection |
| Conductor cross section flexible min. | 0.14 mm² |
| Conductor cross section flexible max. | 1 mm² |
| Conductor cross section solid min. | 0.14 mm² |
| Conductor cross section solid max. | 1.5 mm² |
| Min. AWG conductor cross section, flexible | 26 |
| Max. AWG conductor cross section, flexible | 18 |
| Conductor cross section AWG min. | 26 |
| Conductor cross section AWG max. | 16 |
| Stripping length | 5 mm |
| Tightening torque | 0.4 Nm |
| Connection | Programming connection |
| Number of positions | 9 |
| Connection method | D-SUB connector |
Standards and Regulations
| Free from substances that could impair the application of coating | according to P-VW 3.10.7 57 65 0 VW-AUDI-Seat central standard |
|---|---|
| Connection in acc. with standard | CUL |
| ATEX | II 3 G Ex nA IIC T4 Gc X |
| Noxious gas test | ISA-S71.04-1985 G3 Harsh Group A |
