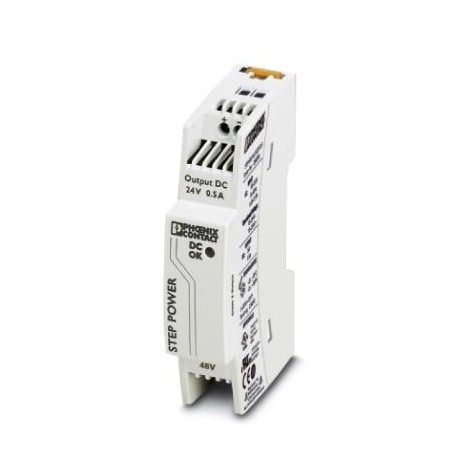

Key Commercial Data
| Orderkey | 2868716 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 239 (C-4-2017) |
| GTIN | 4046356576789 |
| Weight per Piece (excluding packing) | 88.000 g |
| Custom tariff number | 85044030 |
| Country of origin | PL (Poland) |
Ambient conditions
| Degree of protection | IP20 |
|---|---|
| Ambient temperature (operation) | -25 °C … 70 °C (> 55 °C Derating: 2.5 %/K) |
| Ambient temperature (storage/transport) | -40 °C … 85 °C |
| Max. permissible relative humidity (operation) | ≤ 95 % (at 25 °C, non-condensing) |
| Climatic class | 3K3 (in acc. with EN 60721) |
| Degree of pollution | 2 |
Input data
| Nominal input voltage range | 48 V AC |
|---|---|
| Input voltage range | 43 V AC … 52 V AC |
| 60 V DC … 80 V DC | |
| AC frequency range | 45 Hz … 65 Hz |
| Frequency range DC | 0 Hz |
| Current consumption | 0.5 A (43 V AC) |
| 0.45 A (48 V AC) | |
| Nominal power consumption | 21 VA |
| Inrush surge current | < 10 A (typical) |
| Mains buffering | typ. 15 ms (48 V AC) |
| typ. 20 ms (52 V AC) | |
| Input fuse | 1.25 A (slow-blow, internal) |
| Choice of suitable circuit breakers | 6 A … 16 A (Characteristics B, C, D, K) |
| Power factor (cos phi) | 0.7 |
Output data
| Nominal output voltage | 24 V DC ±1 % |
|---|---|
| Nominal output current (IN) | 0.5 A (-25 °C … 55 °C) |
| 0.55 A (-25°C … 40°C permanent ) | |
| Output current Imax | 1 A |
| Derating | 55 °C … 70 °C (2.5%/K) |
| Connection in parallel | Yes, for redundancy and increased capacity |
| Connection in series | yes |
| Feedback resistance | ≤ 35 V DC |
| Output overvoltage protection | < 35 V DC |
| Control deviation | < 1 % (change in load, static 10 % … 90 %) |
| < 2 % (change in load, dynamic 10 % … 90 %) | |
| < 0.1 % (change in input voltage ±10 %) | |
| Residual ripple | < 30 mVPP(20 MHz) |
| Output power | 12 W |
| Typical response time | < 0.5 s |
| Peak switching voltages nominal load | < 20 mVPP(20 MHz) |
| Maximum power dissipation in no-load condition | < 0.3 W |
| Power loss nominal load max. | < 3.4 W |
General
| Net weight | 0.07 kg |
|---|---|
| Efficiency | > 81 % (for 48 V AC and nominal values) |
| Insulation voltage input/output | 4 kV AC (type test) |
| 3.75 kV AC (routine test) | |
| Protection class | II (in closed control cabinet) |
| Degree of protection | IP20 |
| MTBF (IEC 61709, SN 29500) | |
| > 1860000 h (40 °C) | |
| Mounting position | horizontal DIN rail NS 35, EN 60715 |
| Assembly instructions | alignable: 0 mm horizontally, 30 mm vertically |
