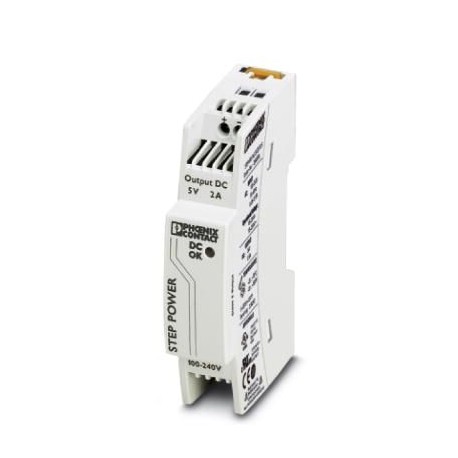

Key Commercial Data
| Orderkey | 2320513 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 242 (C-4-2017) |
| GTIN | 4046356674744 |
| Weight per Piece (excluding packing) | 86.000 g |
| Custom tariff number | 85044030 |
| Country of origin | PL (Poland) |
Ambient conditions
| Degree of protection | IP20 |
|---|---|
| Ambient temperature (operation) | -25 °C … 70 °C (> 55° C derating : 2.5%/K) |
| Ambient temperature (storage/transport) | -40 °C … 85 °C |
| Max. permissible relative humidity (operation) | ≤ 95 % (at 25 °C, non-condensing) |
| Climatic class | 3K3 (in acc. with EN 60721) |
| Degree of pollution | 2 |
Input data
| Nominal input voltage range | 100 V AC … 240 V AC |
|---|---|
| Input voltage range | 85 V AC … 264 V AC |
| 95 V DC … 250 V DC | |
| AC frequency range | 45 Hz … 65 Hz |
| Frequency range DC | 0 Hz |
| Current consumption | 0.2 A (120 V AC) |
| 0.13 A (230 V AC) | |
| Nominal power consumption | 28.9 VA |
| Inrush surge current | < 15 A |
| Mains buffering | typ. 25 ms (120 V AC) |
| typ. 110 ms (230 V AC) | |
| Input fuse | 1.25 A (slow-blow, internal) |
| Choice of suitable circuit breakers | 6 A … 16 A (AC: Characteristics B, C, D, K) |
| Power factor (cos phi) | 0.44 |
Output data
| Nominal output voltage | 5 V DC ±1 % |
|---|---|
| Nominal output current (IN) | 2 A (-25°C … 40°C permanent ) |
| 2.2 A (-25 °C … 55 °C) | |
| Output current Imax | 3.7 A |
| Derating | 55 °C … 70 °C (2.5%/K) |
| Connection in parallel | Yes, for redundancy and increased capacity |
| Connection in series | yes |
| Output overvoltage protection | < 10 V DC |
| Residual ripple | < 50 mVPP |
| Output power | 10 W |
| Typical response time | < 0.5 s |
| Maximum power dissipation in no-load condition | < 0.4 W |
| Power loss nominal load max. | < 2.6 W |
General
| Net weight | 0.1 kg |
|---|---|
| Efficiency | > 81 % (for 230 V AC and nominal values) |
| Insulation voltage input/output | 4 kV AC (type test) |
| 3.75 kV AC (routine test) | |
| Insulation voltage input / PE | 3.5 kV AC (type test) |
| 2 kV AC (routine test) | |
| Insulation voltage output / PE | 500 V DC (routine test) |
| Protection class | II (in closed control cabinet) |
| Degree of protection | IP20 |
| MTBF (IEC 61709, SN 29500) | |
| > 1812000 h (40 °C) | |
| Mounting position | horizontal DIN rail NS 35, EN 60715 |
| Assembly instructions | alignable: 0 mm horizontally, 30 mm vertically |
