Key Commercial Data
| Orderkey | 1607719 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 141 (C-2-2017) |
| GTIN | 4046356274210 |
| Weight per Piece (excluding packing) | 62.300 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |

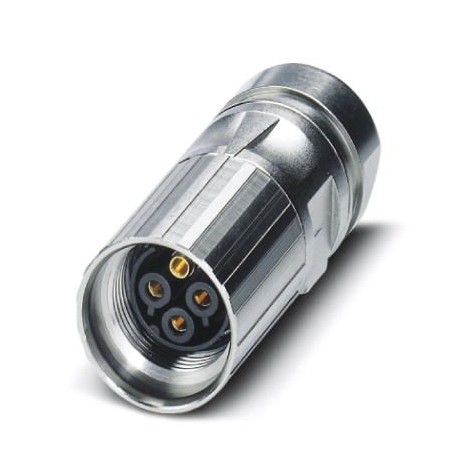

General
| Note | Order information: Order crimp contacts Ø 1 mm separately |
|---|---|
| Type of locking | Screw locking |
| Direction of rotation of contact chamber numbering | Standard |
| Coding | N |
| Contact connection method | Crimp connection |
| Type of contacts | Socket |
| Number of positions | 6 |
| Contact diameter of power contacts | 1 mm |
| Nominal current per power contact at 25°C | 14 A |
| Contact diameter of signal contacts | 1 mm |
| Conductor entry | 8 mm … 10 mm |
| Pg housing screw connection | none |
Material
| Housing material | Turned parts: copper zinc alloy (CuZn), die-cast parts: zinc (GD-Zn) |
|---|---|
| Insulator material | PA 6.6 |
| Gasket and O-ring material | FPM |
Specifications according to DIN EN 61984:2001
| Installation height max. | 3000 m |
|---|---|
| Nominal / operating voltage of power contacts | 630 V |
| Rated surge voltage of power contacts | 6 kV |
| Overvoltage category of power contacts | III |
| Degree of pollution of power contacts | 3 |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer’s declaration” |
