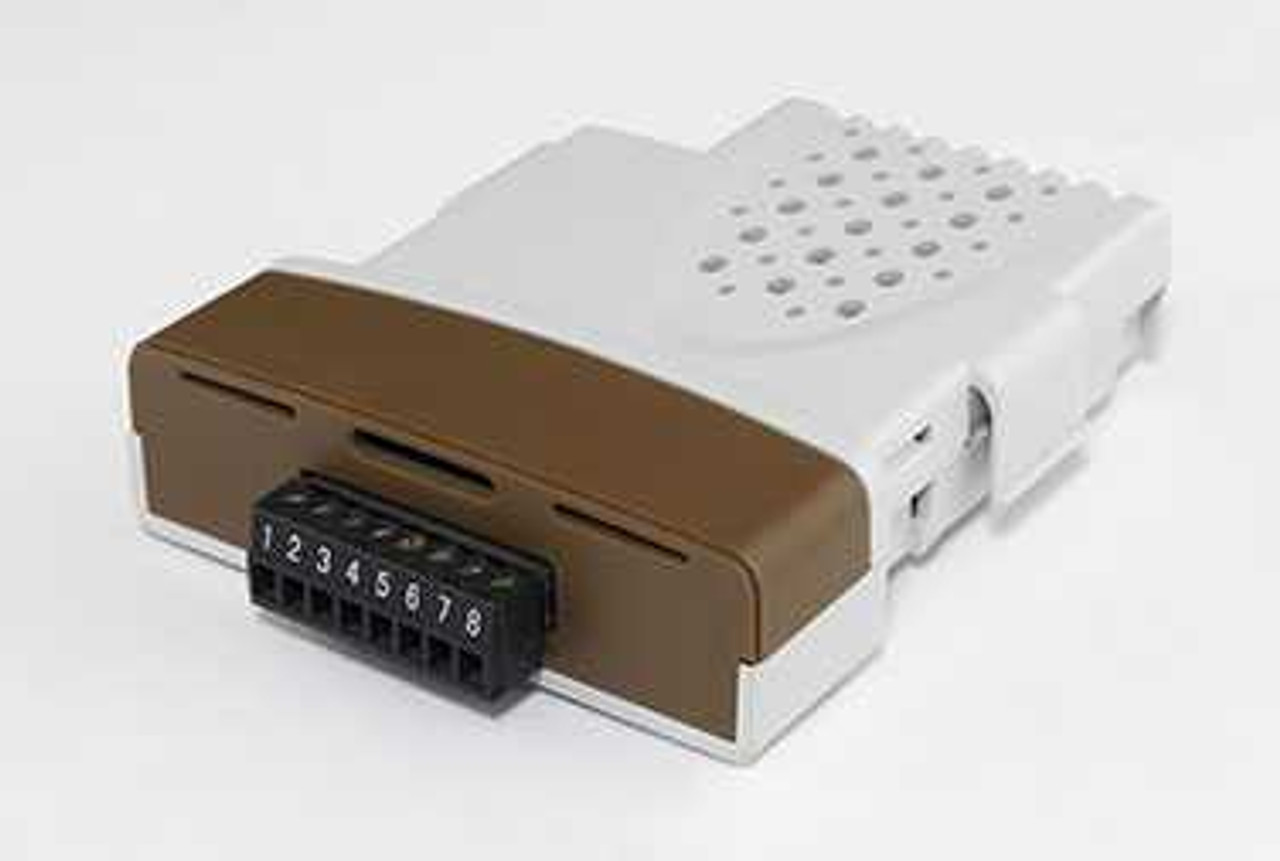

SM-ENCODER-PLUS Nidec Control Techniques

Control Techniques’ incremental encoder input option module supports the following encoder inputs:

• Closed loop vector motor feedback
• Quadrature encoder input
• Marker pulse
• Incremental encoders with frequency and direction signals
• Incremental encoders with forward and reverse signals
• Maximum input frequency 500kHz
• 5V, 8V and 15V signals

SM-ENCODER-PLUS User’s Guide
