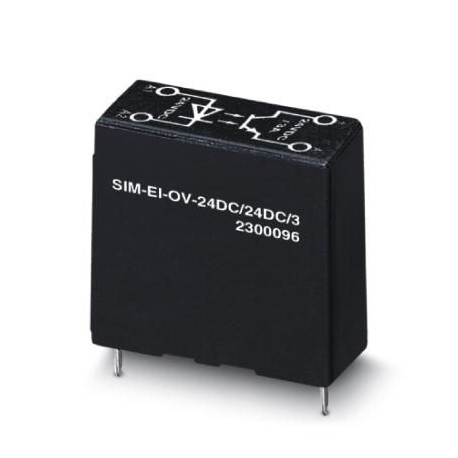

Key Commercial Data
| Orderkey | 2300096 |
|---|---|
| Packing unit | 10 pc |
| Catalog page | Page 557 (C-7-2013) |
| GTIN | 4017918887193 |
| Weight per Piece (excluding packing) | 18.800 g |
| Custom tariff number | 85364190 |
| Country of origin | DE (Germany) |
Ambient conditions
| Ambient temperature (operation) | -20 °C … 60 °C |
|---|---|
| Ambient temperature (storage/transport) | -20 °C … 70 °C |
Input data
| Nominal input voltage UN | 24 V DC |
|---|---|
| Input voltage range in reference to UN | 0.8 … 1.2 |
| Input voltage range | 19.2 V DC … 28.8 V DC |
| Switching threshold “0” signal in reference to UN | ≤ 0.4 |
| Switching threshold “1” signal in reference to UN | ≥ 0.8 |
| Typical input current at UN | 7 mA |
| Type of protection | Reverse polarity protection |
| Surge protection | |
| Transmission frequency | 300 Hz |
Output data
| Output nominal voltage | 24 V DC |
|---|---|
| Output voltage range | 3 V DC … 33 V DC |
| Limiting continuous current | 3 A (see derating curve) |
| Maximum inrush current | 15 A (10 ms) |
| Voltage drop at max. limiting continuous current | ≤ 200 mV |
| Output circuit | 2-wire, floating |
| Type of protection | Reverse polarity protection |
| Surge protection | |
| Protective circuit/component | Polarity protection diode |
General
| Test voltage input/output | 2.5 kV (50 Hz, 1 min.) |
|---|---|
| Mounting position | any |
| Assembly instructions | Can be aligned with 2 mm spacing |
| Standards/regulations | DIN VDE 0110 |
