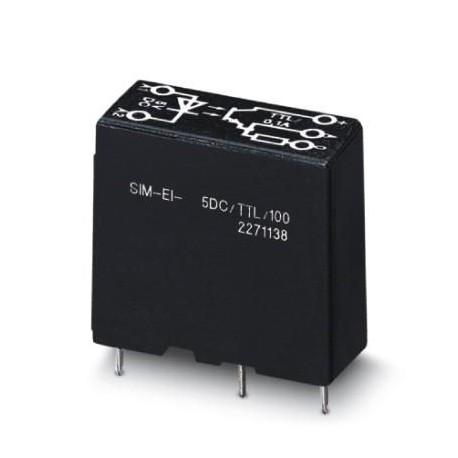

Ambient conditions
| Ambient temperature (operation) | -20 °C … 50 °C |
|---|---|
| Ambient temperature (storage/transport) | -20 °C … 70 °C |
Input data
| Nominal input voltage UN | 24 V AC |
|---|---|
| Input voltage range in reference to UN | 0.9 … 1.1 |
| Input voltage range | 21.6 V DC … 26.4 V DC |
| Switching threshold “0” signal in reference to UN | ≤ 0.4 |
| Switching threshold “1” signal in reference to UN | ≥ 0.8 |
| Typical input current at UN | 5.1 mA |
| Type of protection | Reverse polarity protection |
| Protective circuit/component | Polarity protection diode |
| Transmission frequency | 4000 Hz |
Output data
| Output voltage range | 3 V DC … 5.25 V DC |
|---|---|
| Limiting continuous current | 100 mA |
| Fan out | 1 |
| Voltage drop at max. limiting continuous current | 0.3 V |
| Output circuit | 3-conductor, ground-referenced |
| Type of protection | Reverse polarity protection |
| Free running | |
| Protective circuit/component | Polarity protection diode |
| Damping diode | |
| Output resistor | approx. 390 Ω |
General
| Test voltage input/output | 2.5 kV (50 Hz, 1 min.) |
|---|---|
| Mounting position | any |
| Assembly instructions | Can be aligned with 2 mm spacing |
| Standards/regulations | DIN VDE 0110 |
