Key Commercial Data
| Orderkey | 1623694 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 126 (C-2-2017) |
| GTIN | 4055626194318 |
| Weight per Piece (excluding packing) | 449.200 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
Data of the insulating body
| Data rate | 100 Mbps |
|---|---|
| Coding | CAT5, coding 2 |
| Contact connection method | Crimp connection |
| Type of contacts | Pin |
| Application | Hybrid |
| Number of positions | 13 |
| Contact diameter of power contacts | 3.6 mm |
| Litz wire cross section of power contacts min. | 1 mm² |
| Litz wire cross section of power contacts max. | 16 mm² |
| Nominal current per power contact at 25°C | 70 A |
| Rated surge voltage | 6 kV |
| Rated voltage (II/3) power contact | 850 V DC |
| Rated voltage (III/3) power contact | 630 VòAC |
| Contact diameter of signal contacts | 1 mm |
| Litz wire cross section of signal contacts min. | 0.06 mm² |
| Litz wire cross section of signal contacts max. | 1.5 mm² |
| Nominal current per signal contact at 25°C | 8 A |
| Rated surge voltage | 6 kV |
| Overvoltage category | III |
| Degree of pollution | 3 |
| Rated voltage (III/3) signal contact | 500 V |
| Contact diameter, data contacts | 0.8 mm |
| Litz wire cross section, data contacts, min. | 0.08 mm² |
| Litz wire cross section, data contacts, max. | 0.5 mm² |
| Nominal current per data contact at 25°C | 3.6 A |
| Rated surge voltage | 1.5 kV |
| Rated voltage (III/3) data contact | 50 V |

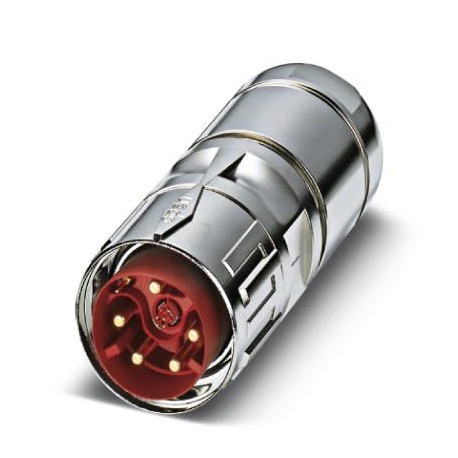

Housing data
| Housing material | Turned parts: copper zinc alloy (CuZn), die-cast parts: zinc (GD-Zn) |
|---|---|
| Type of locking | SPEEDCON locking |
| Degree of protection (when plugged in) | IP68/IP69K |
| Thread type | M40 |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer’s declaration” |
