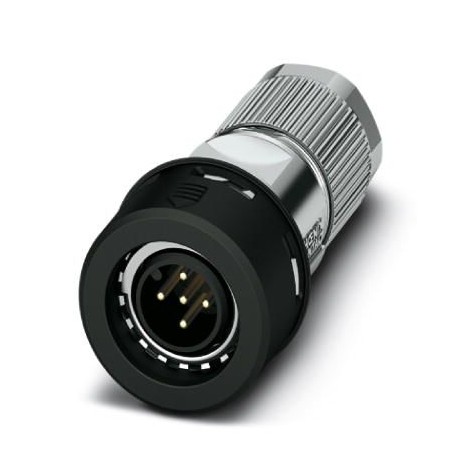

Key Commercial Data
| Orderkey | 1021815 |
|---|---|
| Packing unit | 1 pc |
| GTIN | 4055626514642 |
| Weight per Piece (excluding packing) | 29.800 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
Dimensions
| Wrench size, union nut | 15 mm |
|---|---|
| Diameter housing | 22 mm |
| Length | 44 mm |
| External cable diameter | 4.5 mm … 7.5 mm |
| Stripping length of the sheath | 18 mm |
| Stripping length of the individual wire | 4 mm +0,5 mm |
Ambient conditions
| Ambient temperature (operation) | -40 °C … 85 °C (Plug / socket) |
|---|---|
| Degree of protection | IP65 |
| IP67 | |
| IP68 | |
| IP69K |
General
| Rated current at 40°C | 4 A |
|---|---|
| Rated voltage | 60 V DC |
| 48 V AC | |
| Number of positions | 5 |
| Insulation resistance | ≥ 100 Ω |
| Coding | A – standard |
| Standards/regulations | M12 connector IEC 61076-2-101 In line with |
| Shock, vibration EN 50155:2001 | |
| Signal type/category | Universal |
| Status display | No |
| Overvoltage category | III |
| Degree of pollution | 3 |
| Connection method | Crimp connection |
| Conductor cross section | 0.34 mm² … 1 mm² (flexible) |
| Conductor cross section AWG | 22 … 18 (flexible) |
| Wire diameter incl. insulation | ≤ 2.55 mm (Contact 5 up to max. 2.0 mm) |
| Insertion/withdrawal cycles | ≥ 100 |
| Torque | 4 Nm (Pressure nut with coupling sleeve) |
Material
| Flammability rating according to UL 94 | V0 |
|---|---|
| Contact carrier material | PA 6.6 |
| Material of grip body | Zinc die-cast, nickel-plated |
| Material, knurls | PA 6.6 |
| Sealing material | NBR |
| Standards/regulations | PA 6.6: Fire protection in rail vehicles – requirement sets R22, R23, R24, and R26 acc. to DIN EN 45545-2 (Risk level HL1 – HL3) |
Cable
| Standards/specifications | M12 connector IEC 61076-2-101 In line with |
|---|---|
| Shock, vibration EN 50155:2001 |
