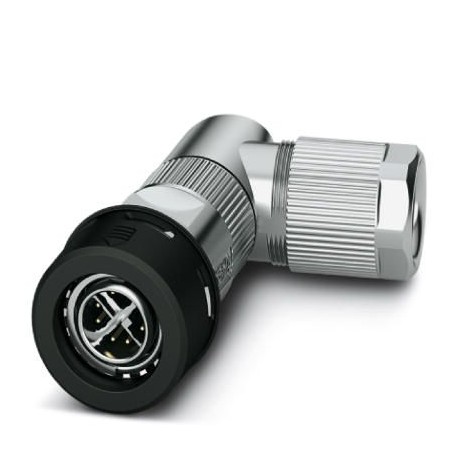

Key Commercial Data
| Orderkey | 1021784 |
|---|---|
| Packing unit | 1 pc |
| GTIN | 4055626514635 |
| Weight per Piece (excluding packing) | 47.600 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
Dimensions
| Wrench size, union nut | 15 mm |
|---|---|
| Diameter housing | 22 mm |
| Length | 53 mm |
| External cable diameter | 6.5 mm … 10 mm |
| Stripping length of the sheath | 20 mm |
| Stripping length of the individual wire | 4 mm +0,5 mm |
Ambient conditions
| Ambient temperature (operation) | -40 °C … 85 °C (Plug / socket) |
|---|---|
| Degree of protection | IP65 |
| IP67 | |
| IP68 | |
| IP69K |
General
| Note | This product corresponds to the PROFINET Cabling and Interconnection Technology Guideline for PROFINET regulations, version 2.00, order no: 2.252, Chapter 8.2 Connectors for Outside Environment (Balanced cabling) |
|---|---|
| Rated current at 40°C | 0.5 A |
| Rated voltage | 48 V AC |
| 60 V DC | |
| Number of positions | 8 |
| Insulation resistance | ≥ 100 Ω |
| Coding | X – data |
| Standards/regulations | M12 connector IEC 61076-2-109 In line with |
| Shock, vibration EN 50155:2001 | |
| Signal type/category | Ethernet/PROFINET CAT6A(IEC 11801), 10 Gbps |
| Status display | No |
| Overvoltage category | II |
| Degree of pollution | 3 |
| Connection method | Crimp connection |
| Conductor cross section | 0.14 mm² … 0.34 mm² (flexible) |
| Conductor cross section AWG | 26 … 22 (flexible) |
| Wire diameter incl. insulation | ≤ 1.6 mm |
| Insertion/withdrawal cycles | ≥ 100 |
| Torque | 1.5 Nm (Screw plug insert with sleeve housing as far it will go) |
| 4 Nm (Pressure nut with coupling sleeve) | |
| Assembly instructions | The pin assignment can be rotated in a 30° pitch to the cable outlet |
Material
| Flammability rating according to UL 94 | V0 |
|---|---|
| Contact carrier material | PA 6.6 |
| Material of grip body | Zinc die-cast, nickel-plated |
| Material, knurls | PA 6.6 |
| Sealing material | NBR |
| Standards/regulations | PA 6.6: Fire protection in rail vehicles – requirement sets R22, R23, R24, and R26 acc. to DIN EN 45545-2 (Risk level HL1 – HL3) |
Standards and Regulations
| Standard designation | M12 connector |
|---|---|
| Standards/regulations | IEC 61076-2-109 |
| Standard designation | Shock, vibration |
| Standards/regulations | EN 50155:2001 |
| Flammability rating according to UL 94 | V0 |
