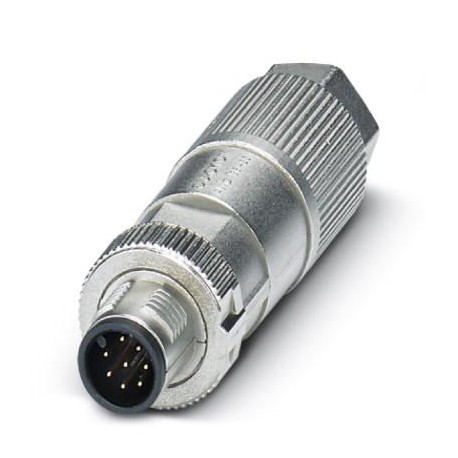

Key Commercial Data
| Orderkey | 1421679 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 345 (C-2-2017) |
| GTIN | 4055626276816 |
| Weight per Piece (excluding packing) | 40.700 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
Dimensions
| Wrench size, union nut | 15 mm |
|---|---|
| Diameter housing | 19 mm |
| Length | 58 mm |
| External cable diameter | 5 mm … 9.7 mm |
| Stripping length of the sheath | ≥ 80 mm |
Ambient conditions
| Ambient temperature (operation) | -40 °C … 85 °C (Plug / socket) |
|---|---|
| Ambient temperature (assembly) | -5 °C … 50 °C |
| Degree of protection | IP65 |
| IP67 |
General
| Rated current at 40°C | 2 A |
|---|---|
| Rated voltage | 48 V AC |
| 60 V DC | |
| Number of positions | 8 |
| Insulation resistance | ≥ 100 MΩ |
| Coding | A – standard |
| Standards/regulations | M12 connector according to IEC 61076-2-101 |
| Signal type/category | Ethernet CAT5 (on the basis of IEC 11801), 1 Gbps |
| Status display | No |
| Overvoltage category | III |
| Degree of pollution | 3 |
| Connection method | Insulation displacement connection |
| Conductor cross section | 0.14 mm² … 0.34 mm² (flexible) |
| 0.14 mm² … 0.34 mm² (solid) | |
| Conductor cross section AWG | 26 … 22 (flexible) |
| 26 … 22 (solid) | |
| Wire diameter including insulation | 0.75 mm … 2 mm |
| Frequency of connections between conductors of the same cross section | 10 |
| Wire insulation material | PVC / PE / PP / rubber |
| Structure of individual litz in acc. with VDE 0295 / smallest wire diameter | Class 2-6 |
| Insertion/withdrawal cycles | ≥ 100 |
| Torque | M12 knurl |
| 5 Nm (Pressure nut) |
Material
| Flammability rating according to UL 94 | V0 |
|---|---|
| Contact material | CuSn |
| Contact surface material | Ni/Au |
| Contact carrier material | PA 6.6 |
| Material of grip body | Zinc die-cast, nickel-plated |
| Material, knurls | Zinc die-cast, nickel-plated |
| Sealing material | NBR |
| Standards/regulations | PA 6.6: Fire protection in rail vehicles – requirement sets R22, R23, R24, and R26 acc. to DIN EN 45545-2 (Risk level HL1 – HL3) |
Standards and Regulations
| Standard designation | M12 connector |
|---|---|
| Standards/regulations | according to IEC 61076-2-101 |
| Flammability rating according to UL 94 | V0 |
