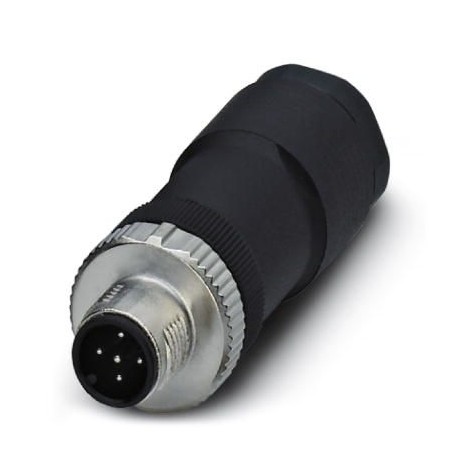

Key Commercial Data
| Orderkey | 1543016 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 23 (C-2-2017) |
| GTIN | 4046356097628 |
| Weight per Piece (excluding packing) | 30.740 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
Dimensions
| Diameter housing | 20 mm |
|---|---|
| Length | 63 mm |
| External cable diameter | 2x 2.1 mm … 3 mm (when using the seal for small outer cable diameters) |
| 2x 4 mm … 5.2 mm (when using the seal for large outer cable diameters) | |
| Stripping length of the sheath | 20 mm |
| Stripping length of the individual wire | 5 mm |
Ambient conditions
| Ambient temperature (operation) | -40 °C … 85 °C (Plug / socket) |
|---|---|
| Degree of protection | IP67 |
General
| Rated current at 40°C | 4 A |
|---|---|
| Rated voltage | 60 V DC |
| 48 V AC | |
| Number of positions | 5 |
| Insulation resistance | ≥ 100 MΩ |
| Coding | A – standard |
| Standards/regulations | M12 connector IEC 61076-2-101 |
| Status display | No |
| Overvoltage category | II |
| Degree of pollution | 3 |
| Connection method | Screw connection |
| Conductor cross section | 0.25 mm² … 0.75 mm² (without ferrule) |
| 0.14 mm² … 0.75 mm² (with ferrule) | |
| 0.25 mm² … 0.75 mm² (solid) | |
| Conductor cross section AWG | 24 … 18 (without ferrule) |
| 26 … 20 (with ferrule) | |
| Insertion/withdrawal cycles | ≥ 100 |
| Torque | 0.4 Nm (M12 knurl) |
| 0.2 Nm (Screw terminal blocks) | |
| 0.8 Nm … 1 Nm (Pressure screw with sleeve housing) | |
| Tightening torque | Screw plug insert with sleeve housing as far it will go |
| Assembly instructions | The wires can be connected both with ferrules and without ferrules |
| This connector includes one seal for small and one seal for large outer cable diameters. |
Material
| Contact material | CuZn |
|---|---|
| Contact surface material | CuSnZn |
| Contact carrier material | PA |
| Material of grip body | PA |
| Material, knurls | Zinc die-cast, nickel-plated |
| Sealing material | NBR |
