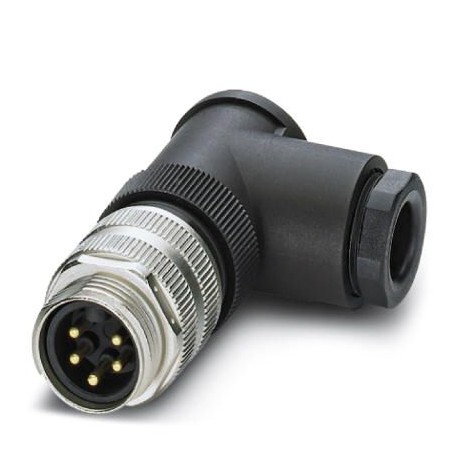

Connector, 4-position, Plug angled 7/8″-16UNF, Screw connection, knurl material: Zinc die-cast, nickel-plated, cable gland Pg13,5, external cable diameter 10 mm … 12 mm, Contact 4 leading
Key Commercial Data
| Orderkey | 1414585 |
|---|---|
| Packing unit | 1 |
| GTIN | 4055626029832 |
| Custom tariff number | 85366990 |
Dimensions
| Length | 72 mm |
|---|---|
| External cable diameter | 10 mm … 12 mm |
| Stripping length of the sheath | 30 mm |
| Stripping length of the individual wire | 7 mm |
Ambient conditions
| Degree of protection | IP67 |
|---|
General
| Rated current at 40°C | 9 A |
|---|---|
| Rated voltage | 300 V |
| Number of positions | 4 |
| Insulation resistance | ≥ 100 MΩ |
| Coding | A – standard |
| Status display | No |
| Overvoltage category | II |
| Degree of pollution | 3 |
| Connection method | Screw connection |
| Conductor cross section | 0.34 mm² … 1.5 mm² |
| Conductor cross section AWG | 22 … 16 |
| Insertion/withdrawal cycles | ≥ 100 |
| Torque | 0.8 Nm (7/8″ connectors) |
| 0.4 Nm (Screw terminal blocks) | |
| 1 Nm … 1.4 Nm (Pressure screw) | |
| Tightening torque | Screw plug insert with sleeve housing as far it will go |
| Assembly instructions | The wires can be connected both with ferrules and without ferrules |
| The connector pin assignment can be rotated 45° to the cable outlet |
Material
| Flammability rating according to UL 94 | HB |
|---|---|
| Contact material | CuZn |
| Contact surface material | Au |
| Contact carrier material | PUR / PA 6.6 |
| Material of grip body | PBT |
| Material, knurls | Zinc die-cast, nickel-plated |
Standards and Regulations
| Flammability rating according to UL 94 | HB |
|---|
