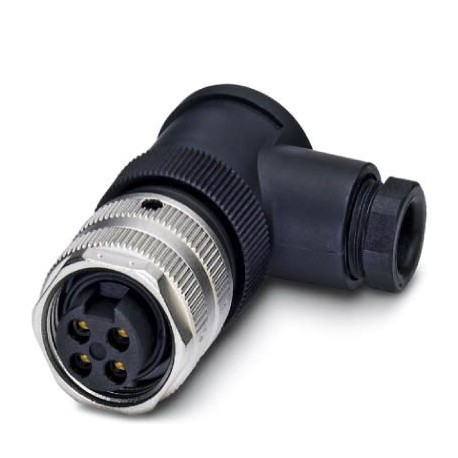

Key Commercial Data
| Orderkey | 1521494 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 25 (C-2-2017) |
| GTIN | 4017918949716 |
| Weight per Piece (excluding packing) | 50.900 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
Dimensions
| Diameter housing | 28 mm |
|---|---|
| Length | 61.1 mm |
| External cable diameter | 6 mm … 8 mm |
| Stripping length of the sheath | 30 mm |
| Stripping length of the individual wire | 7 mm |
Ambient conditions
| Ambient temperature (operation) | -25 °C … 85 °C (Plug / socket) |
|---|---|
| Degree of protection | IP67 |
General
| Rated current at 40°C | 9 A |
|---|---|
| Rated voltage | 300 V |
| Number of positions | 4 |
| Insulation resistance | ≥ 100 MΩ |
| Coding | A – standard |
| Status display | No |
| Overvoltage category | III |
| Degree of pollution | 3 |
| Connection method | Screw connection |
| Conductor cross section | 0.34 mm² … 1.5 mm² (without ferrule) |
| 0.34 mm² … 1.5 mm² (with ferrule) | |
| 0.34 mm² … 1.5 mm² (solid) | |
| Conductor cross section AWG | 22 … 16 (without ferrule) |
| 22 … 16 (with ferrule) | |
| Insertion/withdrawal cycles | ≥ 100 |
| Torque | 0.8 Nm (7/8″ connectors) |
| 0.4 Nm (Screw terminal blocks) | |
| 0.8 Nm … 1 Nm (Pressure screw) | |
| Tightening torque | Screw plug insert with sleeve housing as far it will go |
| Assembly instructions | The wires can be connected both with ferrules and without ferrules |
| The connector pin assignment can be rotated 45° to the cable outlet |
Material
| Flammability rating according to UL 94 | HB |
|---|---|
| Contact material | CuZn |
| Contact surface material | Au |
| Contact carrier material | PUR / PA 6.6 |
| Material of grip body | PBT |
| Material, knurls | Zinc die-cast, nickel-plated |
Standards and Regulations
| Connection in acc. with standard | CUL |
|---|---|
| Flammability rating according to UL 94 | HB |
