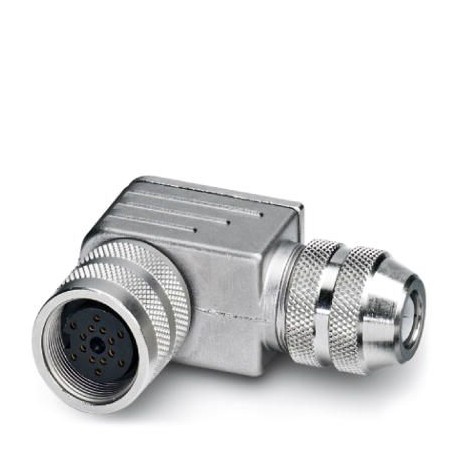

Key Commercial Data
| Orderkey | 1500253 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 313 (C-2-2017) |
| GTIN | 4017918587918 |
| Weight per Piece (excluding packing) | 68.900 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
General
| Rated voltage | 60 V (Overvoltage category I / degree of pollution 1) |
|---|---|
| 32 V (Overvoltage category II / degree of pollution 2) | |
| Number of positions | 14 |
| Flammability rating according to UL 94 | V0 |
Master cable data/connection data
| Conductor cross section max. (signal) | 0.25 mm² |
|---|---|
| Conductor cross section AWG max. (signal) | 24 |
| Conductor cross section max. (energy) | 0.25 mm² |
| Conductor cross section AWG max. (energy) | 24 |
| External cable diameter min. | 6 mm |
| External cable diameter max. | 8 mm |
Insulation material
| Housing material | CuZn |
|---|---|
| Housing surface material | Nickel-plated |
| Contact material | CuSn |
| Contact surface material | Au |
| Contact carrier material | PBT |
| Material of threaded sleeve | Zinc die-cast |
| Material of threaded sleeve surface | Nickel-plated |
Connection assignment
| Slot/position = pin = conductor color | 1 / 4 (A) = P = WH |
|---|---|
| 2 / 4 (A) = J = GN | |
| 3 / 4 (A) = T = YE | |
| 4 / 4 (A) = S = GY | |
| 5 / 4 (A) = G = PK | |
| 6 / 4 (A) = R = RD | |
| 7 / 4 (A) = E = BK | |
| 8 / 4 (A) = O = VT | |
| 9 / 4 (A) = C = WH/PK | |
| 10 / 4 (A) = N = PK/BN | |
| 1-10 / 1 (+24 V) = A+M = BN | |
| 1-10 / 3 (0 V) = L+U = BU |
