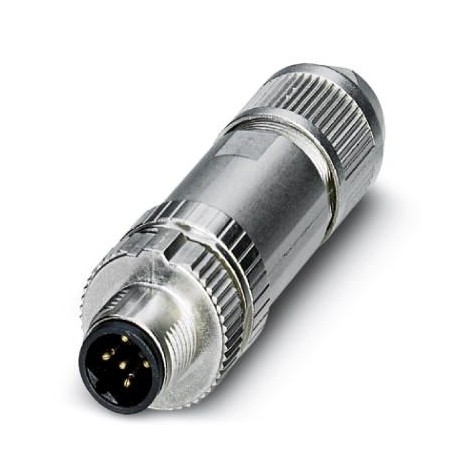

Key Commercial Data
| Orderkey | 1424674 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 422 (C-2-2017) |
| GTIN | 4055626376011 |
| Weight per Piece (excluding packing) | 37.300 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
Dimensions
| Diameter housing | 19 mm |
|---|---|
| Length | 60 mm |
| External cable diameter | 4 mm … 8 mm |
| Stripping length of the sheath | 29 mm |
| Stripping length of the individual wire | 8 mm |
Ambient conditions
| Ambient temperature (operation) | -40 °C … 85 °C (Plug / socket) |
|---|---|
| Degree of protection | IP65 |
| IP67 |
General
| Rated current at 40°C | 4 A |
|---|---|
| Rated voltage | 60 V DC |
| 48 V AC | |
| Number of positions | 5 |
| Insulation resistance | ≥ 100 MΩ |
| Coding | B – inverse |
| Standards/regulations | M12 connector IEC 61076-2-101 |
| Shock, vibration EN 50155:2001 | |
| Signal type/category | INTERBUS, 500 kbps |
| Status display | No |
| Overvoltage category | II |
| Degree of pollution | 3 |
| Connection method | Push-in connection |
| Conductor cross section | 0.14 mm² … 0.75 mm² (without ferrule) |
| 0.08 mm² … 0.5 mm² (with ferrule) | |
| 0.14 mm² … 0.75 mm² (solid) | |
| Conductor cross section AWG | 26 … 18 (without ferrule) |
| 28 … 20 (with ferrule) | |
| Insertion/withdrawal cycles | ≥ 100 |
| Torque | 0.4 Nm (M12 knurl) |
| 0.8 Nm (Connector with coupling sleeve) | |
| 3 Nm (Pressure nut with coupling sleeve) | |
| Assembly instructions | The wires can be connected both with ferrules and without ferrules |
Material
| Flammability rating according to UL 94 | V0 |
|---|---|
| Contact material | CuSn |
| Contact surface material | Ni/Au |
| Contact carrier material | PA 6.6 |
| Material of grip body | Zinc die-cast, nickel-plated |
| Material, knurls | Zinc die-cast, nickel-plated |
| Sealing material | NBR |
| Additional material specifications | TPE-U (Clamping cage, weight: 1.1 g) |
| PA 6 (Actuation lever) | |
| Standards/regulations | PA 6.6: Fire protection in rail vehicles – requirement sets R22, R23, R24, R25, and R26 acc. to DIN EN 45545-2 (Risk level HL1 – HL3) |
| PA 6: Fire protection in rail vehicles – requirement sets R22, R23, and R24 acc. to DIN EN 45545-2 (Risk level HL1 – HL3) |
Standards and Regulations
| Standard designation | M12 connector |
|---|---|
| Standards/regulations | IEC 61076-2-101 |
| Standard designation | Shock, vibration |
| Standards/regulations | EN 50155:2001 |
| Flammability rating according to UL 94 | V0 |
