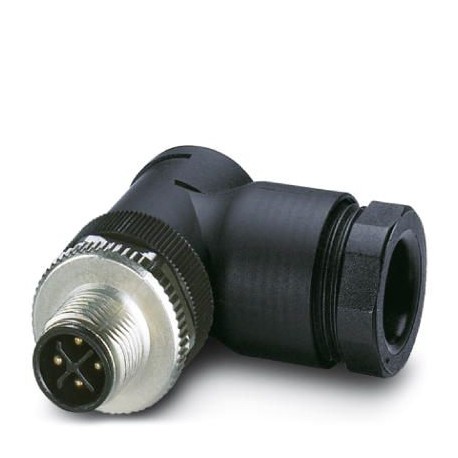

Key Commercial Data
| Orderkey | 1408985 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 286 (C-2-2017) |
| GTIN | 4046356861564 |
| Weight per Piece (excluding packing) | 26.500 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
Dimensions
| Wrench size, union nut | 19 mm |
|---|---|
| Diameter housing | 20.2 mm |
| Length | 44 mm |
| External cable diameter | 8 mm … 10 mm |
| Stripping length of the sheath | 20 mm |
| Stripping length of the individual wire | 5 mm |
Ambient conditions
| Ambient temperature (operation) | -40 °C … 85 °C (Plug / socket) |
|---|---|
| Degree of protection | IP67 |
General
| Note | Strip 21 mm off the cable sheath, strip 6 mm off the conductor insulation, crimp the ferrule, then shorten this to 5 mm. Conductor length with shortened ferrule: 20 mm. Connect conductors and tighten the mounting screws with 0.2 Nm. |
|---|---|
| Rated current at 40°C | 12 A (when using 1.5 mm² conductors) |
| 12 A (at 40 °C) | |
| Rated voltage | 630 V AC |
| Number of positions | 4 |
| Color handle area | black |
| Insulation resistance | > 10 GΩ |
| Coding | S power |
| Standards/regulations | M12 connector IEC 61076-2-111 |
| Status display | No |
| Overvoltage category | III |
| Degree of pollution | 3 |
| Connection method | Screw connection |
| Conductor cross section | 0.75 mm² … 1.5 mm² (without ferrule) |
| 0.75 mm² … 1.5 mm² (with ferrule) | |
| 0.75 mm² … 1.5 mm² (solid) | |
| Conductor cross section AWG | 18 … 16 (without ferrule) |
| 18 … 16 (with ferrule) | |
| Insertion/withdrawal cycles | > 100 |
| Torque | 0.4 Nm (M12 knurl) |
| 1.5 Nm … 2 Nm (Pressure screw with sleeve housing) | |
| 0.4 Nm (Screw plug insert with sleeve housing as far it will go) | |
| 0.2 Nm (Screw terminal blocks) | |
| Assembly instructions | The wires can be connected both with ferrules and without ferrules |
| The connector pin assignment can be rotated 90° to the cable outlet |
Material
| Flammability rating according to UL 94 | V0 |
|---|---|
| Contact material | CuZn |
| Contact surface material | Au |
| Contact carrier material | PA |
| Material of grip body | PA |
| Material, knurls | Zinc die-cast, nickel-plated |
| Sealing material | NBR (Cable clamping) |
Standards and Regulations
| Standard designation | M12 connector |
|---|---|
| Standards/regulations | IEC 61076-2-111 |
| Flammability rating according to UL 94 | V0 |
