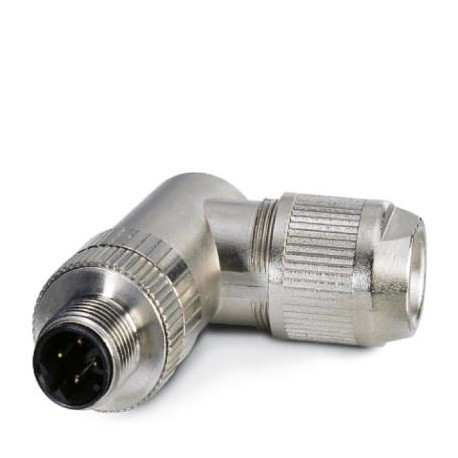

Key Commercial Data
| Orderkey | 1553624 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 345 (C-2-2017) |
| GTIN | 4046356158794 |
| Weight per Piece (excluding packing) | 47.000 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
General
| Rated current at 40°C | 1.75 A |
|---|---|
| Rated voltage | 60 V DC |
| 48 V AC | |
| Number of positions | 4 |
| Insulation resistance | ≥ 100 MΩ |
| Coding | D – data |
| Standards/regulations | M12 connector according to IEC 61076-2-101 |
| Signal type/category | Ethernet CAT5 (on the basis of IEC 11801), 100 Mbps |
| Status display | No |
| Overvoltage category | II |
| Degree of pollution | 3 |
| Connection method | Insulation displacement connection |
| Conductor cross section | 0.14 mm² … 0.34 mm² |
| Conductor cross section AWG | 26 … 22 |
| Wire diameter including insulation | 1 mm … 1.6 mm |
| Frequency of connections between conductors of the same cross section | ≥ 10 |
| Insertion/withdrawal cycles | ≥ 100 |
| Torque | 0.4 Nm (M12 knurl) |
| 0.8 Nm (Connector with coupling sleeve) | |
| 3 Nm (Pressure nut with coupling sleeve) | |
| Assembly instructions | The connector pin assignment can be rotated 45° to the cable outlet |
Material
| Flammability rating according to UL 94 | V0 |
|---|---|
| Contact material | CuSn |
| Contact surface material | Ni/Au |
| Contact carrier material | PA6 |
| Material of grip body | Zinc die-cast, nickel-plated |
| Material, knurls | Nickel-plated brass |
| Sealing material | Neoprene |
Pin assignment
| Contact | Color (signal designation) | Contact (optional) | 1 (Plug) = OG/WH (TD+) |
|---|---|
| 3 (Plug) = OG (TD-) | |
| 2 (Plug) = GN/WH (RD+) | |
| 4 (Plug) = GN (RD-) |
