SACC-M12FR-5CON-PG 9-SH ADH 1411894 PHOENIX CONTACT Connector, 5-pos., shielded, angled M12 socket, A-coded,..
SACC-M12FR-5CON-PG 9-SH ADH 1411894 PHOENIX CONTACT Connector, 5-pos., shielded, angled M12 socket, A-coded,..

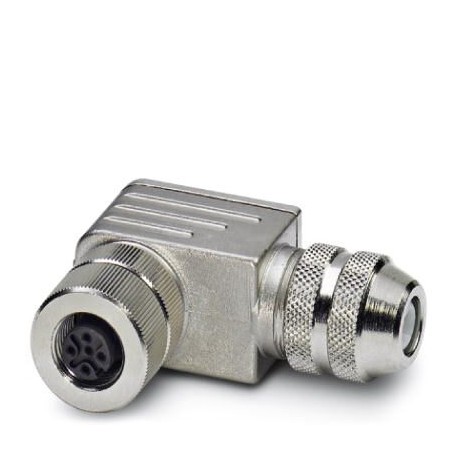

Connector, 5-pos., shielded, angled M12 socket, A-coded, screw connection with pin screws, knurl material: brass, nickel-plated, Pg9 cable gland, outer cable diameter of 6 mm … 8 mm
Liên hệ:
Key Commercial Data
| Orderkey | 1411894 |
|---|---|
| Packing unit | 1 |
| GTIN | 4046356944625 |
| Custom tariff number | 85366990 |
Dimensions
| External cable diameter | 6 mm … 8 mm |
|---|---|
| Stripping length of the sheath | 40 mm |
| Stripping length of the individual wire | 5 mm |
General
| Note | NOTE: Observe the permissible bending radii when laying conductors, since the degree of protection may be put in jeopardy if the bending forces are too high. Alleviate mechanical loads upstream of the connector, e.g. by using cable ties. |
|---|---|
| Rated current at 40°C | 4 A |
| Rated voltage | 60 V DC |
| 48 V AC | |
| Number of positions | 5 |
| Insulation resistance | ≥ 100 MΩ |
| Coding | A – standard |
| Standards/regulations | M12 connector IEC 61076-2-101 |
| Status display | No |
| Overvoltage category | II |
| Degree of pollution | 3 |
| Connection method | Screw connection |
| Conductor cross section | 0.25 mm² … 0.75 mm² |
| Conductor cross section AWG | 24 … 18 |
| Insertion/withdrawal cycles | ≥ 50 |
| Torque | 0.4 Nm (M12 knurl) |
| 0.2 Nm (Screw terminal blocks) | |
| 0.8 Nm … 1 Nm (Pressure nut with coupling sleeve) | |
| Tightening torque | Screw plug insert with sleeve housing as far it will go |
| Assembly instructions | The wires can be connected both with ferrules and without ferrules |
| The connector pin assignment can be rotated 90° to the cable outlet |
Material
| Flammability rating according to UL 94 | HB |
|---|---|
| Contact material | CuZn |
| Contact surface material | Au |
| Contact carrier material | PA |
| Material of grip body | Zinc die-cast, nickel-plated |
| Material, knurls | Zinc die-cast, nickel-plated |
| Sealing material | NBR |
Standards and Regulations
| Standards/specifications | M12 connector IEC 61076-2-101 |
|---|---|
| Connection in acc. with standard | CUL |
| Flammability rating according to UL 94 | HB |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer’s declaration” |
Classifications
[email protected]
| [email protected] 10.0.1 | 27440102 |
|---|---|
| [email protected] 4.0 | 27260700 |
| [email protected] 4.1 | 27260700 |
| [email protected] 5.0 | 27260700 |
| [email protected] 5.1 | 27260700 |
| [email protected] 6.0 | 27260700 |
| [email protected] 7.0 | 27440102 |
| [email protected] 8.0 | 27440102 |
| [email protected] 9.0 | 27440102 |
General
| Note | NOTE: Observe the permissible bending radii when laying conductors, since the degree of protection may be put in jeopardy if the bending forces are too high. Alleviate mechanical loads upstream of the connector, e.g. by using cable ties. |
|---|---|
| Rated current at 40°C | 4 A |
| Rated voltage | 60 V DC |
| 48 V AC | |
| Number of positions | 5 |
| Insulation resistance | ≥ 100 MΩ |
| Coding | A – standard |
| Standards/regulations | M12 connector IEC 61076-2-101 |
| Status display | No |
| Overvoltage category | II |
| Degree of pollution | 3 |
| Connection method | Screw connection |
| Conductor cross section | 0.25 mm² … 0.75 mm² |
| Conductor cross section AWG | 24 … 18 |
| Insertion/withdrawal cycles | ≥ 50 |
| Torque | 0.4 Nm (M12 knurl) |
| 0.2 Nm (Screw terminal blocks) | |
| 0.8 Nm … 1 Nm (Pressure nut with coupling sleeve) | |
| Tightening torque | Screw plug insert with sleeve housing as far it will go |
| Assembly instructions | The wires can be connected both with ferrules and without ferrules |
| The connector pin assignment can be rotated 90° to the cable outlet |
