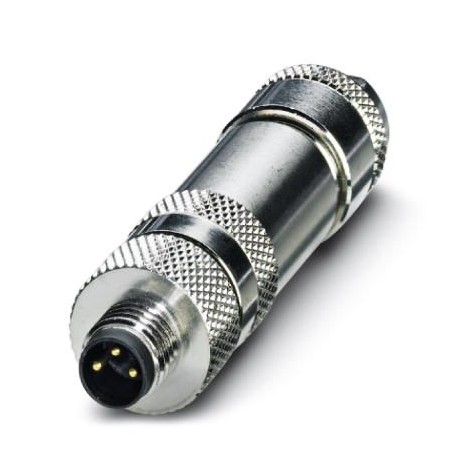

Key Commercial Data
| Orderkey | 1542884 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 15 (C-2-2017) |
| GTIN | 4046356097826 |
| Weight per Piece (excluding packing) | 30.000 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
Dimensions
| Diameter housing | 14 mm |
|---|---|
| Length | 55 mm |
| External cable diameter | 3.5 mm … 5.5 mm |
| Stripping length of the sheath | 12 mm + 1 mm (Shield diameter ≤ 3.5 mm) |
| 18 mm + 1 mm (Shield diameter > 3.5 mm) | |
| Stripping length of the individual wire | 4 mm |
Ambient conditions
| Ambient temperature (operation) | -40 °C … 85 °C (Plug / socket) |
|---|---|
| Degree of protection | IP67 |
General
| Rated current at 40°C | 4 A |
|---|---|
| Rated voltage | 48 V AC |
| 60 V DC | |
| Number of positions | 3 |
| Insulation resistance | ≥ 100 MΩ |
| Coding | A – standard |
| Standards/regulations | M8 connector IEC 61076-2-104 |
| Status display | No |
| Overvoltage category | III |
| Degree of pollution | 3 |
| Connection method | Screw connection |
| Conductor cross section | 0.14 mm² … 0.5 mm² (without ferrule) |
| 0.14 mm² … 0.5 mm² (with ferrule) | |
| 0.14 mm² … 0.5 mm² (solid) | |
| Conductor cross section AWG | 26 … 20 (without ferrule) |
| Insertion/withdrawal cycles | ≥ 100 |
| Torque | 0.2 Nm (M8 knurl) |
| 0.3 Nm … 0.4 Nm (Pressure screw for outer cable diameter 3 mm … 4 mm) | |
| 0.8 Nm … 1 Nm (Pressure screw for outer cable diameter 4 mm … 8 mm) | |
| 0.1 Nm (Screw terminal blocks) | |
| Tightening torque | Screw plug insert with sleeve housing as far it will go |
| Assembly instructions | The wires can be connected both with ferrules (without insulation) and without ferrules. |
Material
| Flammability rating according to UL 94 | HB |
|---|---|
| Contact material | CuZn |
| Contact surface material | Au |
| Contact carrier material | PA |
| Material of grip body | Nickel-plated brass |
| Material, knurls | Nickel-plated brass |
| Sealing material | NBR |
Standards and Regulations
| Standard designation | M8 connector |
|---|---|
| Standards/regulations | IEC 61076-2-104 |
| Flammability rating according to UL 94 | HB |
