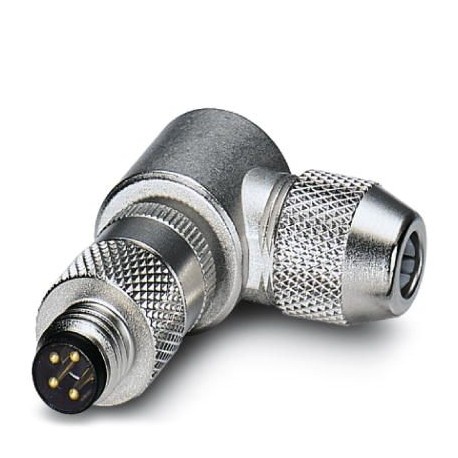

Key Commercial Data
| Orderkey | 1436466 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 16 (C-2-2017) |
| GTIN | 4046356436380 |
| Weight per Piece (excluding packing) | 28.110 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
Dimensions
| Diameter housing | 15 mm |
|---|---|
| Length | 38.4 mm |
| External cable diameter | 3.5 mm … 5 mm |
| Stripping length of the sheath | 30 mm |
| Stripping length of the individual wire | 3 mm |
Ambient conditions
| Ambient temperature (operation) | -40 °C … 85 °C (Plug / socket) |
|---|---|
| Degree of protection | IP67 |
General
| Rated current at 40°C | 4 A |
|---|---|
| Rated voltage | 30 V AC |
| 30 V DC | |
| Number of positions | 4 |
| Insulation resistance | ≥ 100 MΩ |
| Coding | A – standard |
| Standards/regulations | M8 connector IEC 61076-2-104 |
| Status display | No |
| Overvoltage category | II |
| Degree of pollution | 3 |
| Connection method | Solder connection |
| Conductor cross section | 0.08 mm² … 0.25 mm² (flexible) |
| 0.08 mm² … 0.25 mm² (solid) | |
| Conductor cross section AWG | 28 … 24 (flexible) |
| 28 … 24 (solid) | |
| Insertion/withdrawal cycles | ≥ 100 |
| Torque | 0.2 Nm (M8 knurl) |
| Assembly instructions | The connector pin assignment can be rotated 90° to the cable outlet |
Material
| Flammability rating according to UL 94 | HB |
|---|---|
| Contact material | CuZn |
| Contact surface material | Au |
| Contact carrier material | PA |
| Material of grip body | Nickel-plated brass |
| Material, knurls | Nickel-plated brass |
| Sealing material | NBR |
Standards and Regulations
| Standard designation | M8 connector |
|---|---|
| Standards/regulations | IEC 61076-2-104 |
| Flammability rating according to UL 94 | HB |
