SACC-M 8FS-4QO-0,5-M RM MR 1145038 PHOENIX CONTACT Sensor/actuator connector, 4-position, Socket straight M8..
SACC-M 8FS-4QO-0,5-M RM MR 1145038 PHOENIX CONTACT Sensor/actuator connector, 4-position, Socket straight M8..

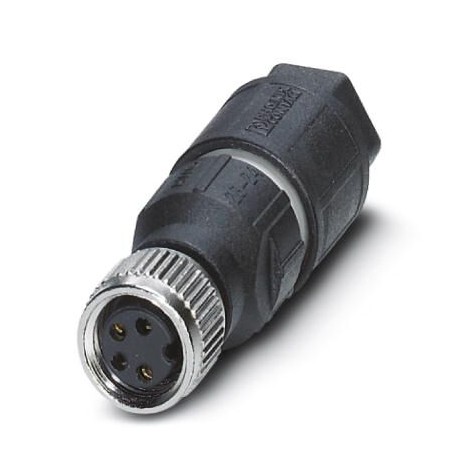

Sensor/actuator connector, 4-position, Socket straight M8, A-coded, Insulation displacement connection, knurl material: Zinc die-cast, nickel-plated, external cable diameter 2.5 mm … 5 mm, Customer version
Liên hệ:
Key Commercial Data
| Orderkey | 1145038 |
|---|---|
| Packing unit | 1 |
| GTIN | 4063151136505 |
| Custom tariff number | 85366990 |
Dimensions
| Diameter housing | 12.5 mm |
|---|---|
| Length | 38.8 mm |
| External cable diameter | 2.5 mm … 5 mm ±0.2 mm |
| Stripping length of the sheath | 40 mm |
Ambient conditions
| Ambient temperature (operation) | -25 °C … 80 °C (Plug / socket) |
|---|---|
| Degree of protection | IP65 |
| IP67 |
General
| Note | NOTE: Observe the permissible bending radii when laying conductors, since the degree of protection may be put in jeopardy if the bending forces are too high. Alleviate mechanical loads upstream of the connector, e.g. by using cable ties. |
|---|---|
| Rated current at 40°C | 4 A |
| Rated voltage | 30 V AC |
| 30 V DC | |
| Number of positions | 4 |
| Color handle area | black |
| Insulation resistance | ≥ 100 MΩ |
| Coding | A – standard |
| Standards/regulations | M8 connector IEC 61076-2-104 |
| Status display | No |
| Overvoltage category | II |
| Degree of pollution | 3 |
| Connection method | Insulation displacement connection |
| Conductor cross section | 0.25 mm² … 0.5 mm² |
| Conductor cross section AWG | 24 … 20 |
| Wire diameter including insulation | 1.1 mm … 1.55 mm |
| Frequency of connections between conductors of the same cross section | 10 |
| Wire insulation material | PVC / PE / PP / rubber |
| Structure of individual litz in acc. with VDE 0295 / smallest wire diameter | Class 2-6 |
| Insertion/withdrawal cycles | ≥ 100 |
| Torque | 0.6 Nm (Pressure nut) |
| 0.2 Nm (M8 knurl) |
Material
| Flammability rating according to UL 94 | HB |
|---|---|
| Contact material | CuSn |
| Contact surface material | Ni/Au |
| Contact carrier material | TPU GF |
| Material of grip body | PA 6 |
| Material, knurls | Zinc die-cast, nickel-plated |
| Sealing material | NBR |
