SACC-M 8FS-4PCON CX 1404600 PHOENIX CONTACT Sensor/actuator connector, female, straight, 4-pos., M8, Piercec..

SACC-M 8FS-4PCON CX 1404600 PHOENIX CONTACT Sensor/actuator connector, female, straight, 4-pos., M8, Piercec..

SACC-M 8FS-4PCON CX 1404600 PHOENIX CONTACT Sensor/actuator connector, female, straight, 4-pos., M8, Piercec..

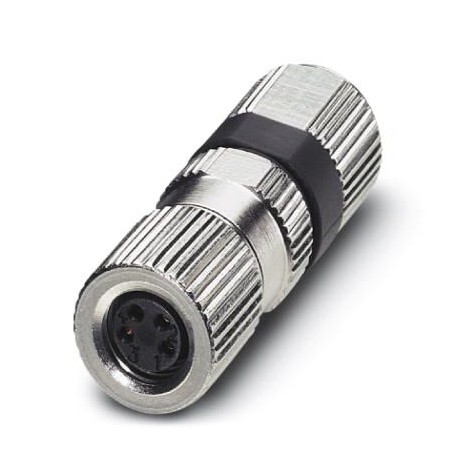

Sensor/actuator connector, female, straight, 4-pos., M8, Piercecon

sản phẩm chính hãng, MỚI 100% CHƯA SỬ DỤNG
SẢN PHẨM LUÔN ĐƯỢC KIỂM TRA TRƯỚC KHI XUẤT KHO
BẢO HÀNH 12 THÁNG ĐỐI VỚI LỖI CỦA NHÀ SẢN XUẤT / HOẶC THEO CHÍNH SÁCH CỦA SẢN PHẨM DO TRƯỜNG THỊNH PHÂN PHỐI
HỖ TRỢ KỸ THUẬT 24/7
MIỄN PHÍ GIAO HÀNG ĐỐI VỚI CÁC ĐƠN HÀNG TỪ 8,000,000VNĐ

Liên hệ:

SKU: 1404600 Danh mục: QUICKON Installation System (QPD) Thẻ: 1404600, PHOENIX_CONTACT, SACC-M 8FS-4PCON CX

Mô tả

Key Commercial Data

Orderkey	1404600
Packing unit	1
GTIN	4046356703253
Custom tariff number	85366990

Drawings
Ambient conditions
Material
Environmental Product Compliance

Dimensions
General
Standards and Regulations
Classifications

Drawings


Functional drawing a = cut flush b = coding When assembled, the coding marks must line up.		Dimensional drawing Socket M8 x 1, straight

Schematic diagram Pin assignment M8 socket, 4-pos., view female side

Dimensions

External cable diameter	3 mm … 5 mm

Ambient conditions

Ambient temperature (operation)	-25 °C … 85 °C (Plug / socket)
Degree of protection	IP68

General

Note	NOTE: Observe the permissible bending radii when laying conductors, since the degree of protection may be put in jeopardy if the bending forces are too high. Alleviate mechanical loads upstream of the connector, e.g. by using cable ties.
Rated current at 40°C	4 A
Rated voltage	30 V
Number of positions	4
Insulation resistance	≥ 100 MΩ
Coding	A – standard
Status display	No
Overvoltage category	II
Degree of pollution	3
Connection method	Piercecon^®
Conductor cross section	0.14 mm² … 0.38 mm²
Conductor cross section AWG	22 … 26
Wire diameter including insulation	1 mm

Material

Flammability rating according to UL 94	V0
Contact material	CuZn
Contact surface material	Ni/Au
Contact carrier material	PA 6.6
Material of grip body	PA 6.6
Material, knurls	Nickel-plated brass
Sealing material	NBR

Standards and Regulations

Flammability rating according to UL 94	V0

Environmental Product Compliance

REACh SVHC
	Lead 7439-92-1
China RoHS	Environmentally Friendly Use Period = 50
	For details about hazardous substances go to tab “Downloads”, Category “Manufacturer’s declaration”

Classifications

[email protected]

[email protected] 10.0.1	27440102
[email protected] 4.0	27140800
[email protected] 4.1	27140800
[email protected] 5.0	27143400
[email protected] 5.1	27143400
[email protected] 6.0	27279200
[email protected] 7.0	27440104
[email protected] 8.0	27440104
[email protected] 9.0	27440102

ETIM

ETIM 3.0	EC002062
ETIM 4.0	EC002062
ETIM 5.0	EC002062
ETIM 6.0	EC002062

UNSPSC

UNSPSC 6.01	30211824
UNSPSC 7.0901	39121413
UNSPSC 11	39121413
UNSPSC 12.01	39121413
UNSPSC 13.2	39121413
UNSPSC 18.0	39121413
UNSPSC 19.0	39121413
UNSPSC 20.0	39121413
UNSPSC 21.0	39121413
