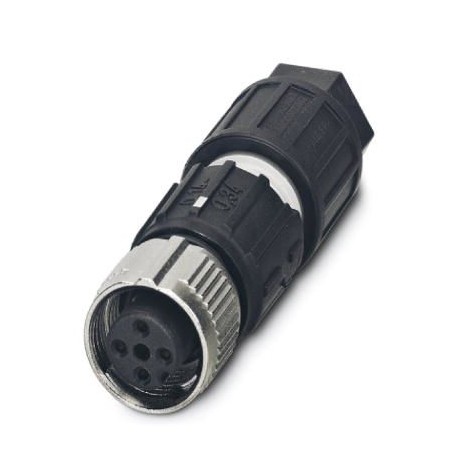

Key Commercial Data
| Orderkey | 1521588 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 17 (C-2-2017) |
| GTIN | 4017918953058 |
| Weight per Piece (excluding packing) | 14.600 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
Dimensions
| Wrench size, union nut | 13 mm |
|---|---|
| Diameter housing | 16.3 mm |
| Length | 51 mm |
| External cable diameter | 3.5 mm … 6 mm |
| Stripping length of the sheath | 40 mm |
Ambient conditions
| Ambient temperature (operation) | -25 °C … 80 °C (Plug / socket) |
|---|---|
| Ambient temperature (assembly) | -5 °C … 50 °C (During assembly) |
| Degree of protection | IP65 |
| IP67 |
General
| Rated current at 40°C | 4 A |
|---|---|
| Rated voltage | 125 V AC |
| 125 V DC | |
| Number of positions | 4 |
| Insulation resistance | ≥ 100 MΩ |
| Coding | A – standard |
| Standards/regulations | M12 connector according to IEC 61076-2-101 |
| Signal type/category | Universal |
| Status display | No |
| Overvoltage category | III |
| Degree of pollution | 3 |
| Connection method | Insulation displacement connection |
| Conductor cross section | 0.14 mm² … 0.34 mm² |
| Conductor cross section AWG | 26 … 22 |
| Wire diameter including insulation | 0.7 mm … 1.6 mm |
| Frequency of connections between conductors of the same cross section | 10 |
| Wire insulation material | PVC / PE / PP / rubber |
| Structure of individual litz in acc. with VDE 0295 / smallest wire diameter | Class 2-6 |
| Insertion/withdrawal cycles | ≥ 100 |
| Torque | 0.4 Nm (M12 knurl) |
| 1.2 Nm (Pressure nut) | |
| Assembly instructions | AWG 20 conductor cross section upon request |
Material
| Flammability rating according to UL 94 | V0 |
|---|---|
| Contact material | CuSn |
| Contact surface material | Ni/Au |
| Contact carrier material | TPU |
| Material of grip body | PA 6 |
| Material, knurls | Zinc die-cast, nickel-plated |
| Sealing material | NBR |
Standards and Regulations
| Standard designation | M12 connector |
|---|---|
| Standards/regulations | according to IEC 61076-2-101 |
| Connection in acc. with standard | CUL |
| Flammability rating according to UL 94 | V0 |
