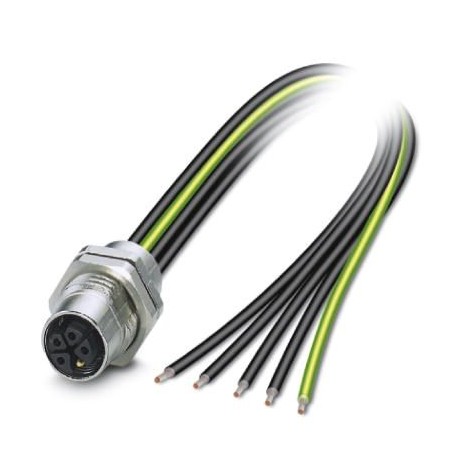

Key Commercial Data
| Orderkey | 1415294 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 291 (C-2-2017) |
| GTIN | 4055626056234 |
| Weight per Piece (excluding packing) | 22.220 g |
| Custom tariff number | 85444290 |
| Country of origin | DE (Germany) |
Ambient conditions
| Ambient temperature (operation) | -40 °C … 85 °C (without mechanical actuation) |
|---|---|
| Degree of protection | IP67 |
General
| Note | The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration. |
|---|---|
| Rated current at 40°C | 16 A |
| Rated voltage | 630 V |
| Rated surge voltage | 6 kV |
| Number of positions | 5 |
| Coding | K – Power |
| Standards/regulations | M12 connector IEC 61076-2-111 In line with |
| Signal type/category | Power |
| Status display | No |
| Overvoltage category | III |
| Degree of pollution | 3 |
| Test voltage | 6 kV |
| Connection method | Individual wires |
| Insertion/withdrawal cycles | > 100 |
| Mounting type | Rear mounting M16 x 1.5 Tightening limitation |
| Assembly instructions | Tightening limitation |
Material
| Flammability rating according to UL 94 | V0 |
|---|---|
| Contact material | CuZn |
| Contact surface material | Au |
| Contact carrier material | PA |
| Material, knurls | Zinc die-cast, nickel-plated |
| Sealing material | FKM |
| Additional material specifications | PU 2K (Grout material) |
Cable
| Cable type | PEX litz wire |
|---|---|
| Conductor cross section | 2.5 mm² |
| AWG signal line | 14 |
| Wire colors | Black 1, black 2, black 3, black 4, green/yellow |
| Material conductor insulation | PE-X |
| Conductor material | Tin-plated Cu litz wires |
| Standards/specifications | M12 connector IEC 61076-2-111 In line with |
| Test voltage Core/Core | 6 kV |
| Flame resistance | in acc. with UL FT-2 |
| Halogen-free | according to IEC 60754-1 |
| Other resistance | Hydrolysis-resistant |
| Ambient temperature (operation) | -25 °C … 90 °C (Operation) |
| -40 °C … 105 °C (cable, fixed installation) | |
| -25 °C … 105 °C (cable, flexible installation) |
