Key Commercial Data
| Orderkey | 1418661 |
|---|---|
| Packing unit | 5 pc |
| Minimum order quantity | 5 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4055626163062 |
| Weight per Piece (excluding packing) | 6.710 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
Ambient conditions
| Ambient temperature (operation) | -25 °C … 105 °C (Plug / socket) |
|---|---|
| -40 °C … 105 °C (without mechanical actuation) | |
| Degree of protection | IP67 (correctly plugged in and locked) |
| IP65 (not plugged in, by means of additional O-ring seal with device) |
General
| Note | The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration. |
|---|---|
| Rated current at 40°C | 3 A |
| Rated voltage | 30 V |

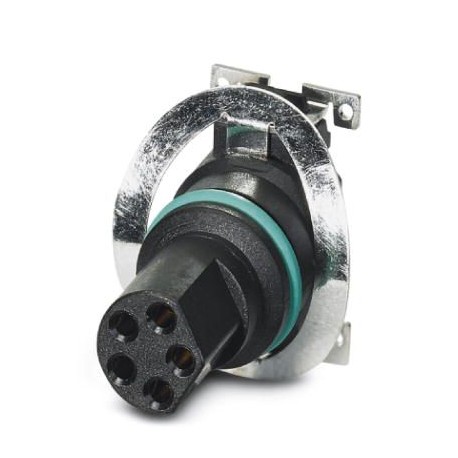

| Number of positions | 5 |
| Insulation resistance | ≤ 100 MΩ |
| Coding | B – standard |
| Standards/regulations | M8 connector IEC 61076-2-104 |
| Signal type/category | Universal |
| Overvoltage category | II |
| Connection method | SMD |
| Mounting type | PCB mounting |
Material
| Flammability rating according to UL 94 | V0 |
|---|---|
| Contact material | CuZn |
| Contact surface material | Au |
| Contact carrier material | PA |
| Sealing material | FKM |
Standards and Regulations
| Standard designation | M8 connector |
|---|---|
| Standards/regulations | IEC 61076-2-104 |
| Flammability rating according to UL 94 | V0 |
