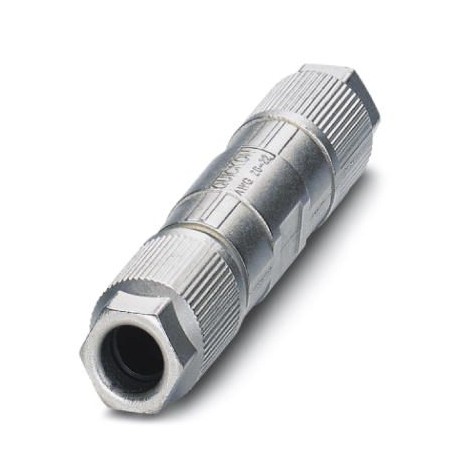

Key Commercial Data
| Orderkey | 1414417 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 17 (C-2-2017) |
| GTIN | 4055626026732 |
| Weight per Piece (excluding packing) | 61.000 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
Dimensions
| Wrench size, union nut | 15 mm |
|---|---|
| External diameter | 5 mm … 9.7 mm |
| Stripping length of the sheath | ≥ 80 mm |
Ambient conditions
| Ambient temperature (operation) | -40 °C … 85 °C |
|---|---|
| Ambient temperature (assembly) | -5 °C … 50 °C |
| Degree of protection | IP65 |
| IP67 |
General
| Rated current at 40°C | 4 A |
|---|---|
| Rated voltage | 48 V AC |
| 60 V DC | |
| Number of positions | 5 |
| Insulation resistance | ≥ 100 MΩ |
| Signal type/category | Universal |
| Status display | No |
| Overvoltage category | II |
| Degree of pollution | 3 |
| Connection method | Insulation displacement connection |
| Conductor cross section | 0.14 mm² … 0.75 mm² (flexible) |
| 0.14 mm² … 0.5 mm² (solid) | |
| Conductor cross section AWG | 26 … 18 (flexible) |
| 26 … 20 (solid) | |
| Wire diameter including insulation | 0.75 mm … 2 mm |
| Frequency of connections between conductors of the same cross section | 10 |
| Wire insulation material | PVC / PE / PP / rubber |
| Structure of individual litz in acc. with VDE 0295 / smallest wire diameter | Class 2-6 |
| Torque | 5 Nm (Pressure nut) |
| Assembly instructions | If the conductor is to be reconnected, it must be cut off above the last contact point. |
Material
| Flammability rating according to UL 94 | V0 |
|---|---|
| Contact material | CuSn |
| Contact surface material | Ni/Au |
| Contact carrier material | PA 6.6 |
| Material of grip body | Zinc die-cast, nickel-plated |
| Material, knurls | Zinc die-cast, nickel-plated |
| Sealing material | NBR |
| Standards/regulations | PA 6.6: Fire protection in rail vehicles – requirement sets R22, R23, and R24 acc. to DIN EN 45545-2 (Risk level HL1 – HL3) |
