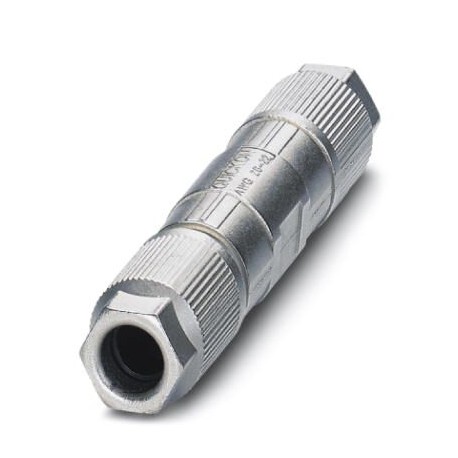

SACC-CC-2QO SH PB 1420426 PHOENIX CONTACT Cable connector, PROFIBUS DP (12 Mbps), 3-pos., halogen-free, shie..
SACC-CC-2QO SH PB 1420426 PHOENIX CONTACT Cable connector, PROFIBUS DP (12 Mbps), 3-pos., halogen-free, shie..
Cable connector, PROFIBUS DP (12 Mbps), 3-pos., halogen-free, shielded, displacement connection, housing material: zinc die-cast, nickel-plated, outer cable diameter of 5 mm … 9.7 mm
Liên hệ:
Key Commercial Data
| Orderkey | 1420426 |
|---|---|
| Packing unit | 1 |
| Catalog page | Page 423 (C-2-2019) |
| GTIN | 4055626323343 |
| Custom tariff number | 85366990 |
Dimensions
| Wrench size, union nut | 15 mm |
|---|---|
| External diameter | 5 mm … 9.7 mm |
| Stripping length of the sheath | ≥ 80 mm |
General
| Rated current at 40°C | 4 A |
|---|---|
| Rated voltage | 60 V DC |
| 48 V AC | |
| Number of positions | 3 |
| Insulation resistance | ≥ 100 MΩ |
| Signal type/category | PROFIBUS DP, 12 Mbps |
| Status display | No |
| Overvoltage category | II |
| Degree of pollution | 3 |
| Connection method | Insulation displacement connection |
| Conductor cross section | 0.25 mm² … 0.75 mm² (flexible) |
| 0.14 mm² … 0.5 mm² (solid) | |
| Conductor cross section AWG | 24 … 18 (flexible) |
| 26 … 20 (solid) | |
| Wire diameter including insulation | 1 mm … 2 mm (maximum of 2.6 mm when connecting PROFIBUS cables) |
| Frequency of connections between conductors of the same cross section | 10 |
| Wire insulation material | PVC / PE / PP / rubber |
| Structure of individual litz in acc. with VDE 0295 / smallest wire diameter | Class 2-6 |
| Torque | 5 Nm (Pressure nut) |
| Assembly instructions | If the conductor is to be reconnected, it must be cut off above the last contact point. |
Material
| Flammability rating according to UL 94 | V0 |
|---|---|
| Contact material | CuSn |
| Contact surface material | Ni/Au |
| Contact carrier material | PA 6.6 |
| Material of grip body | Zinc die-cast, nickel-plated |
| Material, knurls | Zinc die-cast, nickel-plated |
| Sealing material | NBR |
| Standards/regulations | PA 6.6: Fire protection in rail vehicles – requirement sets R22, R23, and R24 acc. to DIN EN 45545-2 (Risk level HL1 – HL3) |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
[email protected]
| [email protected] 10.0.1 | 27440102 |
|---|---|
| [email protected] 4.0 | 27260700 |
| [email protected] 4.1 | 27260700 |
| [email protected] 5.0 | 27260700 |
| [email protected] 5.1 | 27260700 |
| [email protected] 6.0 | 27260700 |
| [email protected] 7.0 | 27440102 |
| [email protected] 8.0 | 27440102 |
| [email protected] 9.0 | 27440102 |
