Key Commercial Data
| Orderkey | 1413997 |
|---|---|
| Packing unit | 20 pc |
| Minimum order quantity | 20 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4055626022673 |
| Weight per Piece (excluding packing) | 10.540 g |
| Custom tariff number | 79070000 |
| Country of origin | DE (Germany) |
Ambient conditions
| Ambient temperature (operation) | -25 °C … 85 °C (Plug / socket) |
|---|---|
| -40 °C … 85 °C (without mechanical actuation) | |
| Degree of protection | IP67 (correctly plugged in and locked) |
General
| Note | The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration. |
|---|---|
| Standards/regulations | M12 connector IEC 61076-2-101 In line with |
| Insertion/withdrawal cycles | > 100 |
| Torque | 1.5 Nm … 2 Nm (Installation-side) |

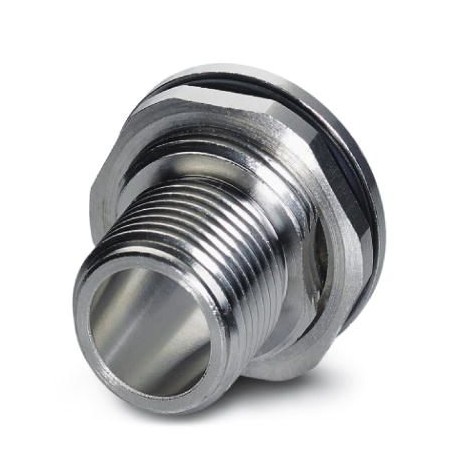

| Mounting type | Rear mounting M15 x 1 Spacing between the top edge of the PCB and the back of the front plate: 6 mm |
Material
| Material, knurls | Zinc die-cast, nickel-plated |
|---|---|
| Material | Zinc die-cast (nickel-plated) |
| Sealing material | FKM (O-ring on housing) |
| Additional material specifications | Brass, nickel-plated (Locking nut) |
