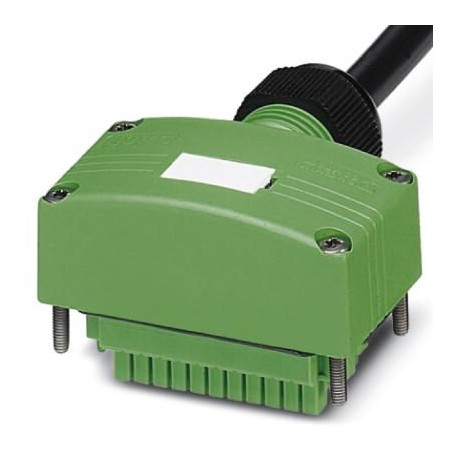

Key Commercial Data
| Orderkey | 1537899 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4046356074759 |
| Weight per Piece (excluding packing) | 1,930.000 g |
| Custom tariff number | 85444290 |
| Country of origin | PL (Poland) |
General
| Rated voltage | 120 V |
|---|---|
| Current carrying capacity per I/O signal | 2 A |
| Total rated current | 10 A |
| Number of slots | 4 |
Ambient conditions
| Degree of protection | IP65 |
|---|---|
| IP67 | |
| IP69K | |
| Ambient temperature (operation) | -30 °C … 80 °C |
| -40 °C … 90 °C (for fixed installation) | |
| -5 °C … 80 °C (for flexible installation) |
Master cable data/connection data
| Connection method | Pluggable screw connection |
|---|---|
| Length of cable | 15 m |
| Cable type | Master cable suitable for flexible cable conduit |
| Signal line cross section | 8x 0.5 mm² |
| AWG signal line | 20 |
| Conductor structure signal line | 64x 0.10 mm |
| Power supply cross section | 3x 1 mm² |
| AWG power supply | 17 |
| Conductor structure, voltage supply | 128x 0.10 mm |
| External diameter | 9.5 mm |
| Max. bending cycles | 1500000 |
| Bending radius | 100 mm |
| Traversing path | 2 m |
| Traversing rate | 2 m/s |
| Tightening torque, cover screw | 0.35 Nm |
| Tightening torque, union nut | 2.5 Nm |
Insulation material
| Housing material | PBT |
|---|---|
| Material of contact, master cable side | CU alloy |
| Material of contact surface, master cable side | Gold-plated |
| Material of the contact carrier on the master cable side | PA |
Pin assignment
| Slot/position = Wire color or connection | 1 / 4 (A) = WH |
|---|---|
| 1 / 2 (B) = GY/PK | |
| 2 / 4 (A) = GN | |
| 2 / 2 (B) = RD/BU | |
| 3 / 4 (A) = YE | |
| 3 / 2 (B) = WH/GN | |
| 4 / 4 (A) = GY | |
| 4 / 2 (B) = BN/GN | |
| 1-4 / 1 (+ 120 V) = BN | |
| 1-4 / 3 (0 V) = BU | |
| 1-4 / 5 (PE) = GN/YE |
