Key Commercial Data
| Orderkey | 1555554 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 146 (C-4-2013) |
| GTIN | 4046356170536 |
| Weight per Piece (excluding packing) | 2,396.000 g |
| Custom tariff number | 85444290 |
| Country of origin | DE (Germany) |
General
| Rated voltage | 24 V DC |
|---|---|
| Max. operating voltage Umax | 30 V DC |
| Current carrying capacity per I/O signal | 2 A |
| Current carrying capacity per slot | 4 A |
| Total rated current | 12 A |
| Number of positions | 5 |
| Number of slots | 8 |

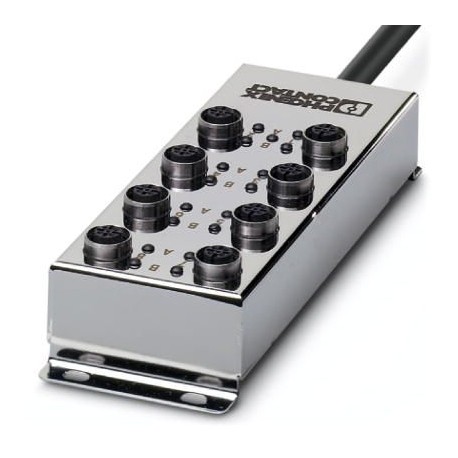

| Sensor/actuator connection system | M12 socket |
Ambient conditions
| Degree of protection | IP65 |
|---|---|
| IP67 | |
| IP69K | |
| Ambient temperature (operation) | -30 °C … 80 °C |
| -40 °C … 90 °C (for fixed installation) | |
| -5 °C … 80 °C (for flexible installation) |
Master cable data/connection data
| Connection method | Fixed connection |
|---|---|
| Length of cable | 10 m |
| Signal line cross section | 16x 0.5 mm² |
| AWG signal line | 20 |
| Conductor structure signal line | 64x 0.10 mm |
| Power supply cross section | 3x 1 mm² |
| AWG power supply | 17 |
| Conductor structure, voltage supply | 128x 0.10 mm |
| External diameter | 11.6 mm |
| Max. bending cycles | 1000000 |
| Traversing path | 5 m |
| Traversing rate | 3 m/s |
| Tightening torque slot sensor/actuator cable | 0.4 Nm |
Insulation material
| Housing material | Stainless steel 1.4404 |
|---|---|
| Material of the moulding mass | PUR |
| Contact material | CuSn6 |
| Contact surface material | gold-plated |
| Contact carrier material | PBT |
| Material of threaded sleeve | Stainless steel 1.4404 |
| O-ring material | FKM |
