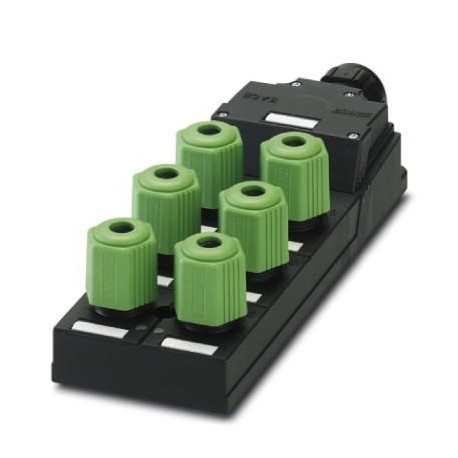

Key Commercial Data
| Orderkey | 1662942 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 273 (C-2-2017) |
| GTIN | 4017918137496 |
| Weight per Piece (excluding packing) | 218.900 g |
| Custom tariff number | 85366990 |
| Country of origin | PL (Poland) |
General
| Rated voltage | 24 V DC |
|---|---|
| Max. operating voltage Umax | 30 V DC |
| Current carrying capacity per I/O signal | 4 A |
| Current carrying capacity per slot | 4 A |
| Total rated current | 12 A |
| Number of positions | 4 |
| Number of slots | 6 |
| Flammability rating according to UL 94 | V0 |
| Sensor/actuator connection system | QUICKON |
Local diagnostics function
| Local diagnostics | Supply voltage per module Green LED |
|---|---|
| Status display I/O Yellow LED |
Master cable data/connection data
| Connection method | Spring-cage connection |
|---|---|
| Conductor cross section min. (signal) | 0.14 mm² |
| Conductor cross section max. (signal) | 1 mm² |
| Conductor cross section AWG min. (signal) | 26 |
| Conductor cross section AWG max. (signal) | 17 |
| Stripping length (signal) | 10 mm |
| Conductor cross section min. (energy) | 0.2 mm² |
| Conductor cross section max. (energy) | 1.5 mm² |
| Conductor cross section AWG min. (energy) | 24 |
| Conductor cross section AWG max. (energy) | 16 |
| External cable diameter min. | 6.5 mm |
| External cable diameter max. | 9.5 mm |
| Stripping length | 70 mm (Master cable) |
| Tightening torque, union nut | 2.5 Nm |
Conductor data
| Structure of individual litz in acc. with VDE 0295 / smallest wire diameter | Class 2-6 // 0.34 mm²: 0.1 mm; 0.5 – 0.75 mm²: 0.15 mm |
|---|---|
| Wire insulation material | PVC / PE |
| Wire diameter including insulation | ≤ 2.5 mm |
| Minimum external conductor diameter | 4 mm |
| Maximum external conductor diameter | 7.5 mm |
| Tightening torque, union nut | 2.5 Nm |
| Wrench size, union nut | 22 mm |
| Note on the frequency of connections | if the conductor is connected more than once, seal and cap may need to be replaced. |
| Conductor cross section flexible min. | 0.34 mm² |
| Conductor cross section flexible max. | 0.75 mm² |
| Conductor cross section AWG min. | 22 |
| Conductor cross section AWG max. | 18 |
