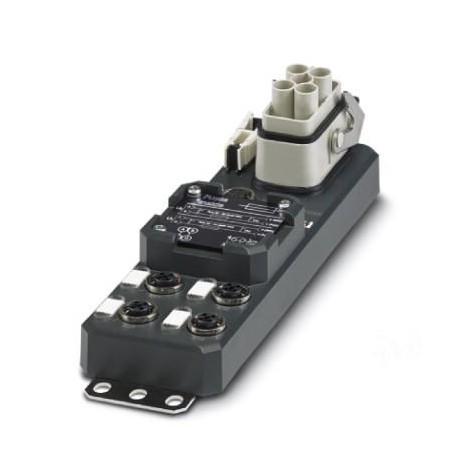

Key Commercial Data
| Orderkey | 1411048 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 303 (C-2-2017) |
| GTIN | 4046356920254 |
| Weight per Piece (excluding packing) | 552.880 g |
| Custom tariff number | 85444290 |
| Country of origin | DE (Germany) |
General
| Rated voltage | 24 V DC |
|---|---|
| Max. operating voltage Umax | 30.5 V DC |
| Current carrying capacity per I/O signal | 10 A (M12 diagnostic socket for each channel max. 50 mA) |
| Current carrying capacity per slot | 2x 9.25 A (at 40 °C) |
| Total rated current | 70 A (at 40°C, observe the distribution of the current paths under load) |
| Protective circuit | Overload protection for the outputs Fuse in header |
| Number of positions | 4 |
| Number of slots | 4 |
| Flammability rating according to UL 94 | V0 |
| Sensor/actuator connection system | M12-SPEEDCON-socket |
Ambient conditions
| Degree of protection | IP66 |
|---|---|
| IP67 | |
| Ambient temperature (operation) | -25 °C … 60 °C |
| Ambient temperature (storage/transport) | -25 °C … 80 °C |
Local diagnostics function
| Local diagnostics | Supply voltage per module Green LED |
|---|---|
| Status display I/O Yellow LED |
Master cable data/connection data
| Connection method | Plug-in master cable connection |
|---|---|
| Conductor cross section min. (energy) | 2.5 mm² |
| Conductor cross section max. (energy) | 6 mm² |
| Conductor cross section AWG min. (energy) | 14 |
| Conductor cross section AWG max. (energy) | 10 |
| External cable diameter min. | 9 mm |
| External cable diameter max. | 15.5 mm |
| Tightening torque, cover screw | 0.6 Nm |
| Tightening torque, union nut | 5 Nm |
| Tightening torque slot sensor/actuator cable | 0.4 Nm |
Insulation material
| Housing material | PBT |
|---|---|
| Material of the moulding mass | PUR |
| Contact material | Cu alloy |
| Contact surface material | pre-nickel plated, gold-plated |
| Contact carrier material | PA |
| Material of contact, master cable side | CU alloy |
| Material of contact surface, master cable side | Silver-plated |
| Material of the contact carrier on the master cable side | PC |
| Material of threaded sleeve | Zinc die-cast |
| Material of threaded sleeve surface | Nickel-plated |
| Sealing material | Viton (M12 socket) |
| NBR (Master cable side) |
