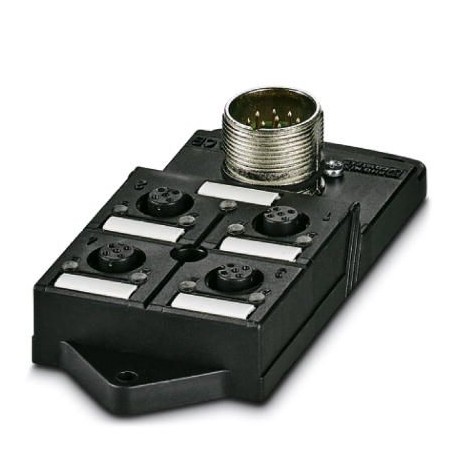

Key Commercial Data
| Orderkey | 1692802 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 114 (PC-2009) |
| GTIN | 4017918177935 |
| Weight per Piece (excluding packing) | 104.200 g |
| Custom tariff number | 85366990 |
| Country of origin | PL (Poland) |
General
| Rated voltage | 120 V |
|---|---|
| Max. operating voltage Umax | 135 V |
| Current carrying capacity per I/O signal | 2 A |
| Current carrying capacity per slot | 4 A |
| Total rated current | 12 A |
| Number of positions | 5 |
| Number of slots | 4 |
| Flammability rating according to UL 94 | V0 |
| Sensor/actuator connection system | M12 socket |
Master cable data/connection data
| Connection method | M23 plug connection |
|---|---|
| Tightening torque slot sensor/actuator cable | 0.4 Nm |
Insulation material
| Housing material | PA |
|---|---|
| Contact material | CuSn |
| Contact surface material | Ni/Au |
| Contact carrier material | PA |
| Material of contact, master cable side | CU alloy |
| Material of contact surface, master cable side | Gold-plated |
| Material of the contact carrier on the master cable side | PA |
| Material of threaded sleeve | PA |
| O-ring material | NBR |
Pin assignment
| Slot/position = Wire color or connection | 1 / 4 (A) = 15 |
|---|---|
| 1 / 2 (B) = 7 | |
| 2 / 4 (A) = 5 | |
| 2 / 2 (B) = 4 | |
| 3 / 4 (A) = 16 | |
| 3 / 2 (B) = 8 | |
| 4 / 4 (A) = 3 | |
| 4 / 2 (B) = 14 | |
| 1-4 / 1 (+ 120 V) = 19 | |
| 1-4 / 3 (0 V) = 6 | |
| 1-4 / 5 (PE) = 12 |
