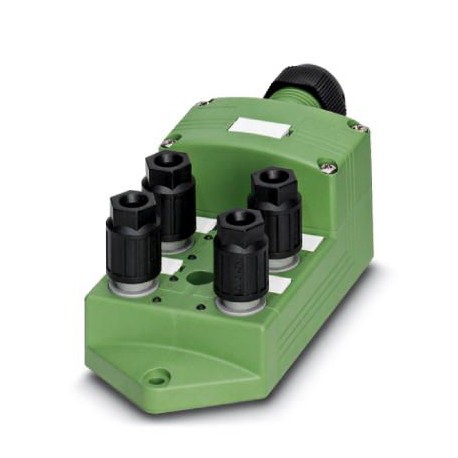

Key Commercial Data
| Orderkey | 1548383 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 272 (C-2-2017) |
| GTIN | 4046356142854 |
| Weight per Piece (excluding packing) | 209.760 g |
| Custom tariff number | 85366990 |
| Country of origin | PL (Poland) |
General
| Rated voltage | 24 V DC |
|---|---|
| Max. operating voltage Umax | 30 V DC |
| Current carrying capacity per I/O signal | 2 A |
| Current carrying capacity per slot | 4 A |
| Total rated current | 10 A |
| 2x 8 A (For electrical isolation) | |
| Number of positions | 4 |
| Number of slots | 4 |
| Flammability rating according to UL 94 | V0 |
| Sensor/actuator connection system | QUICKON |
Ambient conditions
| Degree of protection | IP65 |
|---|---|
| IP67 | |
| IP69K | |
| Ambient temperature (operation) | -30 °C … 80 °C |
Local diagnostics function
| Local diagnostics | Supply voltage per module Green LED |
|---|---|
| Status display I/O Yellow LED |
Master cable data/connection data
| Connection method | Pluggable screw connection |
|---|---|
| Conductor cross section min. (signal) | 0.14 mm² |
| Conductor cross section max. (signal) | 1.5 mm² |
| Conductor cross section AWG min. (signal) | 26 |
| Conductor cross section AWG max. (signal) | 16 |
| Stripping length (signal) | 7 mm |
| Conductor cross section min. (energy) | 0.14 mm² |
| Conductor cross section max. (energy) | 1.5 mm² |
| Conductor cross section AWG min. (energy) | 26 |
| Conductor cross section AWG max. (energy) | 16 |
| External cable diameter min. | 7 mm |
| External cable diameter max. | 12 mm |
| Stripping length | 50 mm (Master cable) |
| Tightening torque, cover screw | 0.35 Nm |
| Tightening torque, union nut | 2.5 Nm |
| Tightening torque of mounting screw for fixing the housing | 0.5 Nm |
Conductor data
| Structure of individual litz in acc. with VDE 0295 / smallest wire diameter | Class 2-6 |
|---|---|
| Wire insulation material | PVC / PE /PP |
| Wire diameter including insulation | 0.7 mm … 1.3 mm |
| Minimum external conductor diameter | 3.5 mm |
| Maximum external conductor diameter | 6 mm |
| Tightening torque, union nut | 2 Nm |
| Wrench size, union nut | 13 mm |
| Conductor cross section flexible min. | 0.14 mm² |
| Conductor cross section flexible max. | 0.34 mm² |
| Conductor cross section AWG min. | 26 |
| Conductor cross section AWG max. | 22 |
