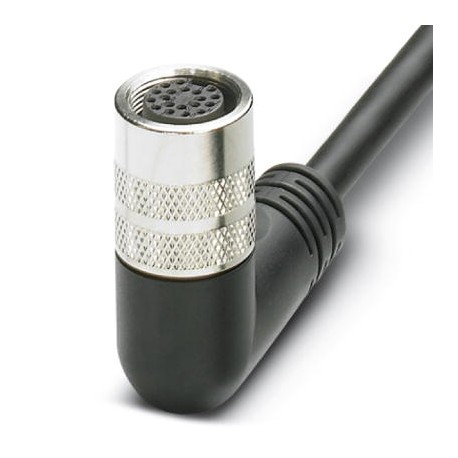

Key Commercial Data
| Orderkey | 1693720 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 313 (C-2-2017) |
| GTIN | 4017918189068 |
| Weight per Piece (excluding packing) | 512.700 g |
| Custom tariff number | 85444290 |
| Country of origin | DE (Germany) |
General
| Rated voltage | 125 V AC |
|---|---|
| 150 V DC | |
| Number of positions | 12 |
| Number of slots | 8 |
| Sensor/actuator connection system | M8 socket |
Ambient conditions
| Degree of protection | IP67 |
|---|---|
| Ambient temperature (operation) | -25 °C … 90 °C (Plug / socket) |
| -40 °C … 90 °C (for fixed installation) | |
| -5 °C … 80 °C (for flexible installation) |
Master cable data/connection data
| Connection method | M16 plug connection |
|---|---|
| Length of cable | 5 m |
| Cable type | Master cable suitable for flexible cable conduit |
| Signal line cross section | 8x 0.34 mm² |
| AWG signal line | 22 |
| Conductor structure signal line | 42x 0.10 mm |
| Power supply cross section | 2x 0.75 mm² |
| AWG power supply | 18 |
| Conductor structure, voltage supply | 96x 0.10 mm |
| External diameter | 8.7 mm |
| Max. bending cycles | 1500000 |
| Bending radius | 100 mm |
| Traversing path | 2 m |
| Traversing rate | 2 m/s |
Insulation material
| Housing material | PUR |
|---|---|
| Material of contact, master cable side | CU alloy |
| Material of contact surface, master cable side | Gold-plated |
| Material of the contact carrier on the master cable side | TPU |
| Material of threaded sleeve | Cu alloy |
| Material of threaded sleeve surface | Nickel-plated |
| Sealing material | NBR |
Connection assignment
| Slot/position = pin = conductor color | 1 / 4 (A) = P = WH |
|---|---|
| 2 / 4 (A) = J = GN | |
| 3 / 4 (A) = T = YE | |
| 4 / 4 (A) = S = GY | |
| 5 / 4 (A) = G = PK | |
| 6 / 4 (A) = R = RD | |
| 7 / 4 (A) = E = BK | |
| 8 / 4 (A) = O = VT | |
| 1-8 / 3 (0 V) = L+U = BU |
