Technical features
Detection properties
| Nominal sensing distance |
300mm |
|
| Sensitivity adjustment |
Trimmer |
|
Application
| Function Principle |
Blackground suppression |
|
| Description |

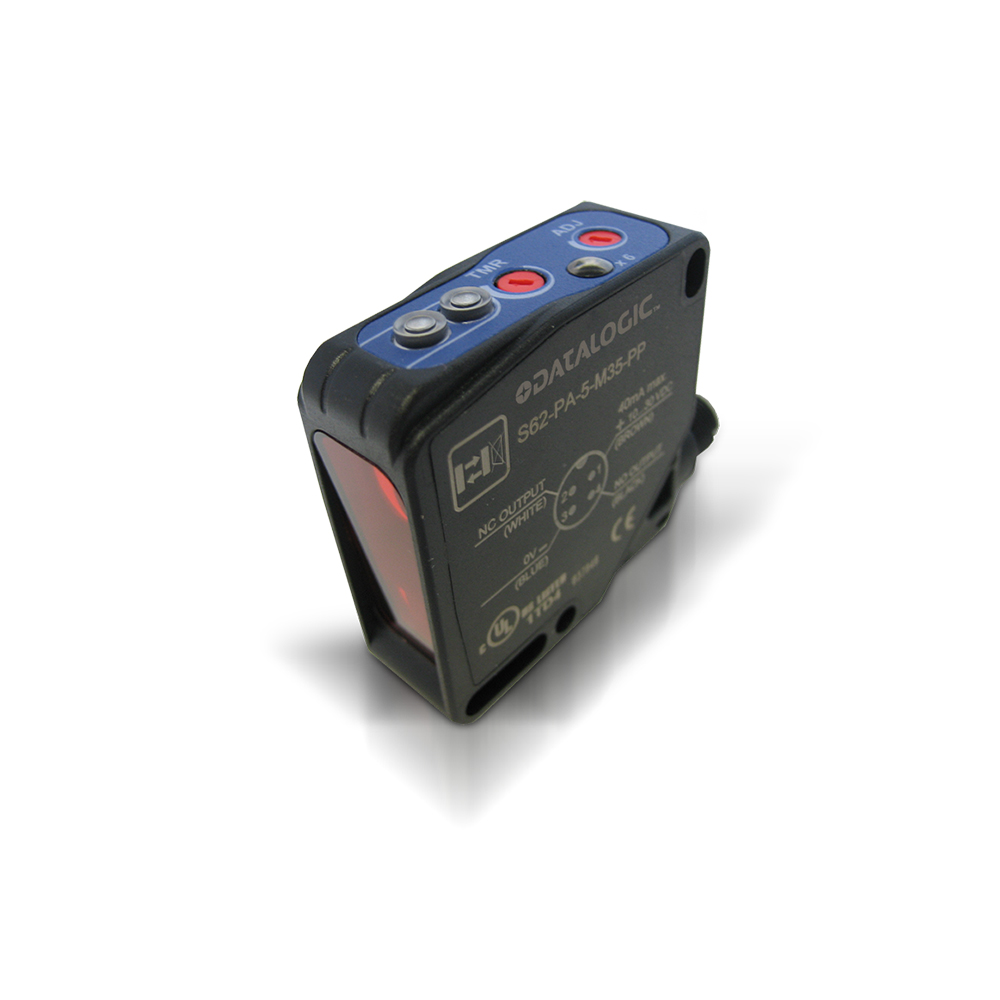

Compact square case |
|
| Optic position |
axial |
|
| Functions |
Background suppression |
|
Outputs
| Output type |
NPN / PNP |
|
| Response time |
0,5 |
|
Electrical data
| Operating Voltage |
10…30VDC |
|
| No-Load supply current |
≤ 30mA |
|
| Load current |
≤100mA |
|
| Output voltage drop |
≤2V@Iload=100mA |
|
| Short-circuit protection |
YES |
|
| Reverse Polarity Protection |
Yes |
|
| Emission |
LED Red |
|
| Interference to external light |
according to EN 60947-5-2 : 2020 |
|
| Impulsive Overvoltage Protection |
Yes |
|
| Insulation resistance |
>20 MΩ 500 Vdc, between electronics and housing |
|
| Contact resistance |
500 Vac 1 min., between electronics and housing |
|
Mechanical data
| Dimensions |
18x50x50 |
|
| Housing Material |
ABS / PMMA |
|
| Connections |
2m cable |
|
| Active Head Material |
PMMA |
|
| Storage temperature |
– 25°C…+70°C |
|
| Material | ||
| Diameter/Dimension |
Cubic |
|
Test/Approvals
| Approvals |
CE cULus |
|
| Shocks and vibrations |
0.5 mm amplitude, 10 … 55 Hz frequency, for every axis (EN60068-2-6) |
|
Generical Data
| Dimensions |
18x50x50 |
|
| Mechanical Protection |
IP67 |
|
