Technical features
Detection properties
| Nominal sensing distance |
2m |
|
| Sensitivity adjustment |
Trimmer |
|
Application
| Function Principle |
Diffuse beam |
|
| Description |

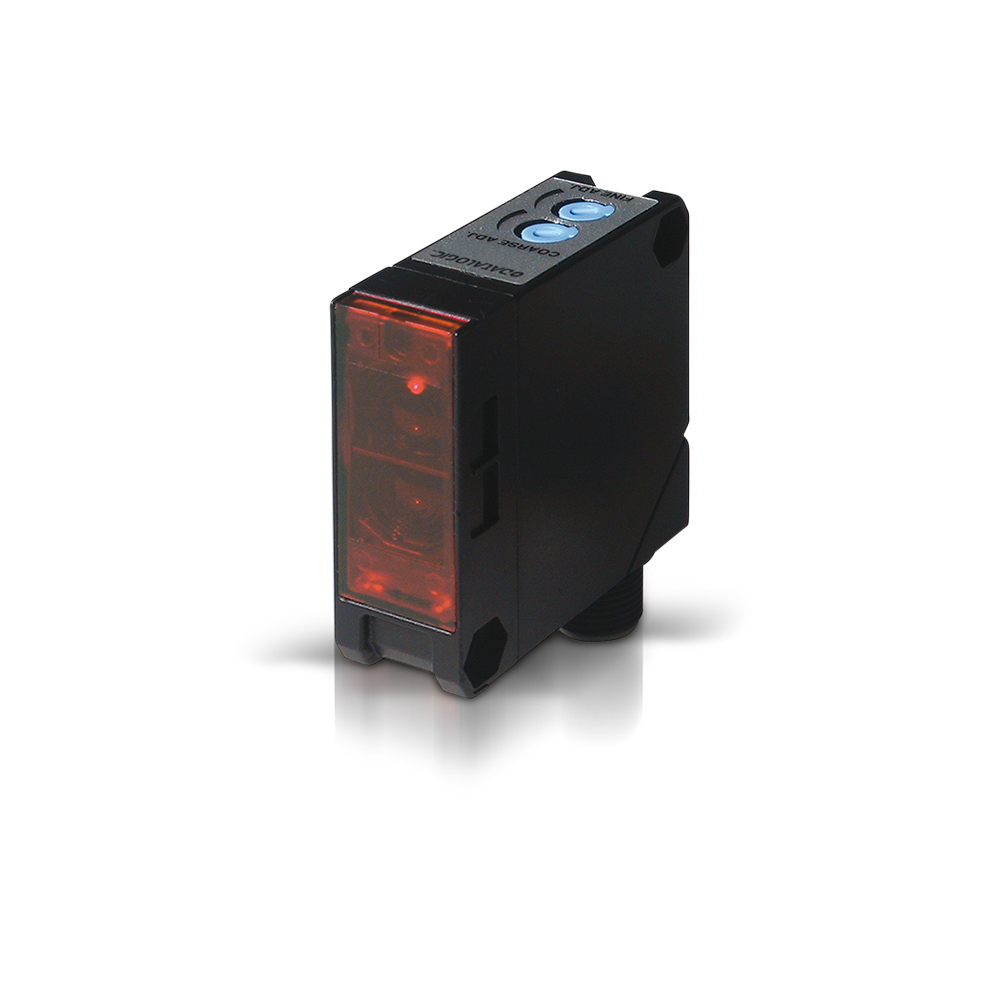

Compact square case |
|
| Functions |
Diffuse beam |
|
Outputs
| Output type |
NPN / PNP L/D Selectable |
|
| Output Function |
L/D Selectable |
|
| Switching frequency |
500Hz |
|
| Response time |
1ms |
|
Electrical data
| Operating Voltage |
10…30VDC |
|
| No-Load supply current |
≤ 30mA |
|
| Load current |
≤100mA |
|
| Output voltage drop |
≤1,5V@Iload=100mA |
|
| LED indicators |
Red OUTPUT |
|
| Short-circuit protection |
YES |
|
| Reverse Polarity Protection |
Yes |
|
| Emission |
LED Infrared |
|
| Interference to external light |
according to EN 60947-5-2 : 2020 |
|
| Impulsive Overvoltage Protection |
Yes |
|
| Insulation resistance |
>20 MΩ 500 Vdc, between electronics and housing |
|
| Contact resistance |
500 Vac 1 min., between electronics and housing |
|
Mechanical data
| Dimensions |
18x50x50 |
|
| Housing Material |
ABS |
|
| Connections |
M12 plug |
|
| Active Head Material |
PMMA |
|
| Storage temperature |
– 25°C…+70°C |
|
| Material | ||
| Diameter/Dimension |
Cubic |
|
Test/Approvals
| Approvals |
CE cULus |
|
| Shocks and vibrations |
0.5 mm amplitude, 10 … 55 Hz frequency, for every axis (EN60068-2-6) |
|
Generical Data
| Dimensions |
18x50x50 |
|
| Operating Temperature |
– 25°C…+ 55°C (Without freeze) |
|
| Mechanical Protection |
IP65 |
|
