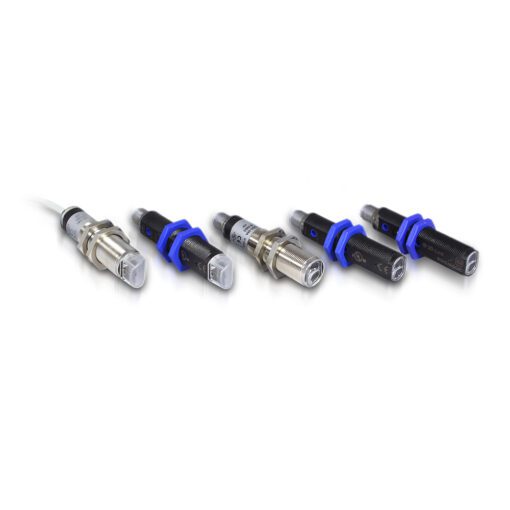

S5N-MA-2-D00-NN
S5N-MA-2-D00-NN
- All optic functions
- Improved EMI immunity
- Improved ambient light immunity
- Improved laser safety level
- M18 flat plastic with universal mounting
- Short plastic housing models
- Available in M18 metal housing
- Stainless steel housing models
- Axial or radial optics, cable or connector
- Standard 4-wire NO-NC NPN or PNP output
- M12 pigtail models available
- IO-Link connectivity V1.1 with double channel
Liên hệ:
Technical features
Detection properties
| Nominal sensing distance |
100mm |
|
| Sensitivity adjustment |
n/a |
|
Application
| Function Principle |
Fix focus beam |
|
| Notes |
white target Kodak 90% 100 x 100mm |
|
| Description |
Tubular M18 – axial optic |
|
| Optic position |
axial |
|
| Functions |
Fix focus beam |
|
Outputs
| Output type |
NPN NO+NC |
|
| Output Function |
NO+NC |
|
| Switching frequency |
1kHz |
|
| Response time |
500µs |
|
Electrical data
| Operating Voltage |
10…30VDC |
|
| No-Load supply current |
≤ 35 mA |
|
| Load current |
≤100mA |
|
| Leakage current |
≤10μA |
|
| Output voltage drop |
≤2V@Iload=100mA |
|
| LED indicators |
yellow OUTPUT LED, green STABILITY LED |
|
| Short-circuit protection |
YES |
|
| Reverse Polarity Protection |
Yes |
|
| Emission |
LED Red |
|
| Interference to external light |
according to EN 60947-5-2 : 2020 |
|
| Impulsive Overvoltage Protection |
Yes |
|
| Insulation resistance |
>20 MΩ 500 Vdc, between electronics and housing |
|
| Contact resistance |
500 Vac 1 min., between electronics and housing |
|
Mechanical data
| Dimensions |
Ø18×57 |
|
| Housing Material |
Metal – Nickel plated brass |
|
| Connections |
2m cable |
|
| Active Head Material |
PMMA |
|
| Storage temperature |
– 25°C…+70°C |
|
| Material | ||
| Diameter/Dimension |
M18 |
|
Test/Approvals
| Approvals |
CE cULus |
|
| EMC compatibility |
EN 60947-5-2 |
|
| Shocks and vibrations |
0.5 mm amplitude, 10 … 55 Hz frequency, for every axis (EN60068-2-6) |
|
Accessories
| Supplied Accessories |
nuts M18 x 1 |
|
Generical Data
| Dimensions |
M18x57 |
|
| Operating Temperature |
– 25°C…+ 55°C (Without freeze) |
|
| Mechanical Protection |
IP67 |
|
