Technical features
Detection properties
| Nominal sensing distance |
5m |
|
| Sensitivity adjustment |
Trimmer |
|
Application
| Function Principle |
Retroreflective |
|
| Description |

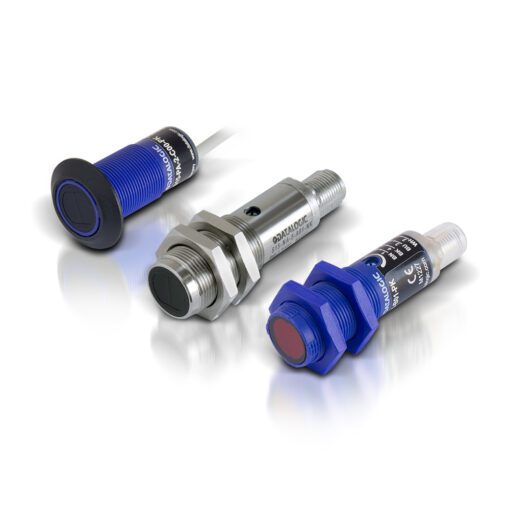

Tubular M18 – axial optic |
|
| Functions |
Retroreflective |
|
Outputs
| Output type |
PNP – Dark/Light sel. NO/NC selectable |
|
| Output Function |
NO/NC selectable |
|
| Response time |
1 |
|
Electrical data
| Operating Voltage |
12…30VDC |
|
| No-Load supply current |
≤ 25mA |
|
| Load current |
≤100mA |
|
| Output voltage drop |
≤2V@Iload=100mA |
|
| LED indicators |
Yellow (output sate) green (stabolity) |
|
| Short-circuit protection |
YES |
|
| Reverse Polarity Protection |
Yes |
|
| Emission |
LED Infrared |
|
| Interference to external light |
according to EN 60947-5-2 : 2020 |
|
| Impulsive Overvoltage Protection |
Yes |
|
| Insulation resistance |
>20 MΩ 500 Vdc, between electronics and housing |
|
| Contact resistance |
500 Vac 1 min., between electronics and housing |
|
Mechanical data
| Dimensions |
Ø18×67 |
|
| Housing Material |
Metal – Stainless steel AISI 316-L |
|
| Connections |
M12 plug |
|
| Active Head Material |
PMMA |
|
| Storage temperature |
– 25°C…+70°C |
|
| Material | ||
| Diameter/Dimension |
M18 |
|
Test/Approvals
| Approvals |
CE cULus |
|
| Shocks and vibrations |
0.5 mm amplitude, 10 … 55 Hz frequency, for every axis (EN60068-2-6) |
|
Accessories
| Supplied Accessories |
nuts M18 x 1 |
|
Generical Data
| Dimensions |
M18 x 1 /L=67 |
|
| Operating Temperature |
– 25°C…+ 55°C (Without freeze) |
|
| Mechanical Protection |
IP67 & IP69K |
|
S15-NA-5-A01-PK
