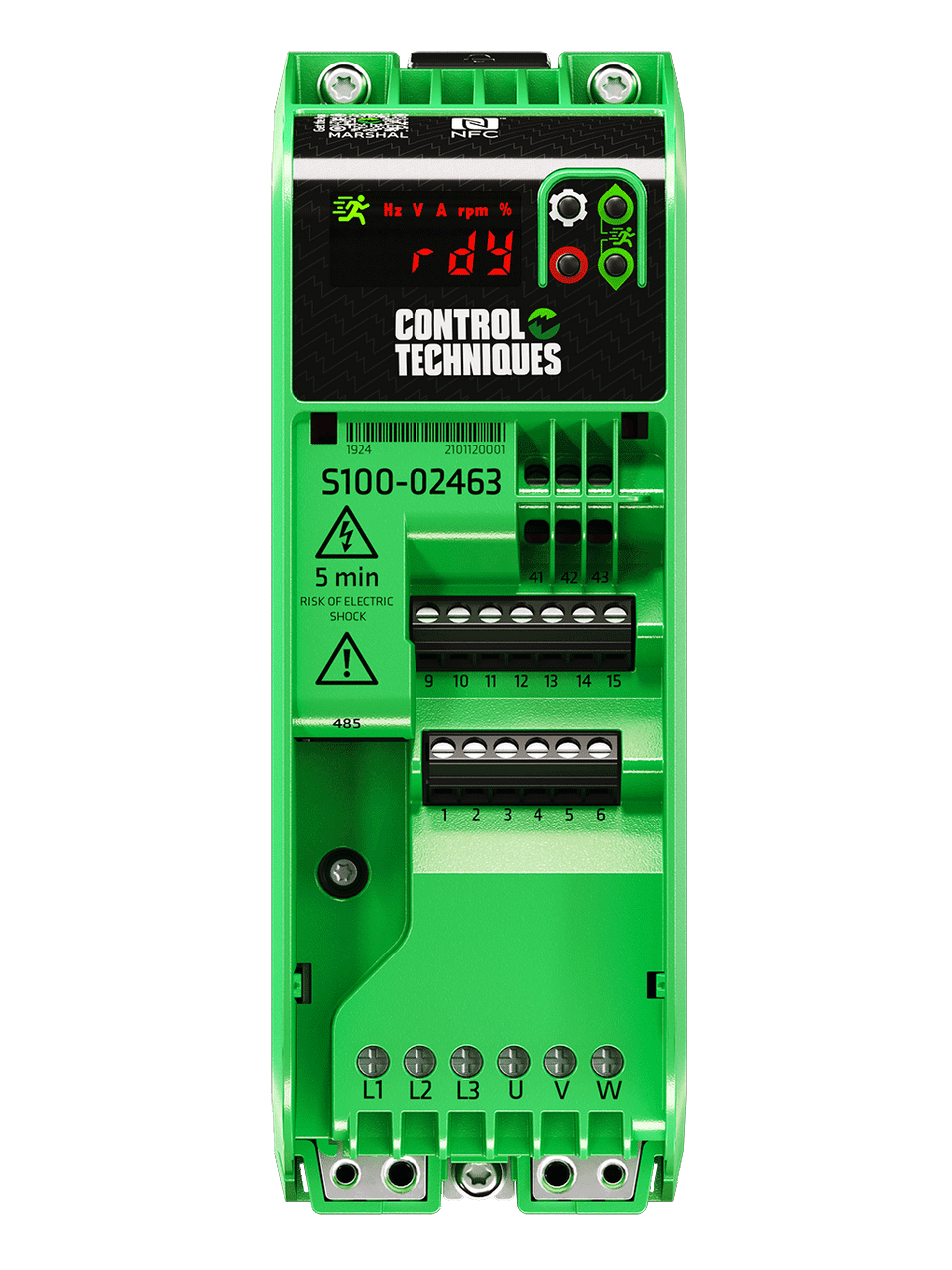

S100-02S41-0B0000 Nidec Control Techniques Commander S100

SKU:: S100-02S41-0B0000
Condition:: New
Weight:: 3.70 LBS
Width:: 5.00
(in)
Height:: 8.30
(in)
Depth:: 7.10
(in)
Shipping:: Calculated at Checkout
: Buy in bulk and save
Horse Power:: 0.75HP
Voltage:: 230VAC
Current:: 3.5A

sản phẩm chính hãng, MỚI 100% CHƯA SỬ DỤNG
SẢN PHẨM LUÔN ĐƯỢC KIỂM TRA TRƯỚC KHI XUẤT KHO
BẢO HÀNH 12 THÁNG ĐỐI VỚI LỖI CỦA NHÀ SẢN XUẤT / HOẶC THEO CHÍNH SÁCH CỦA SẢN PHẨM DO TRƯỜNG THỊNH PHÂN PHỐI
HỖ TRỢ KỸ THUẬT 24/7
MIỄN PHÍ GIAO HÀNG ĐỐI VỚI CÁC ĐƠN HÀNG TỪ 8,000,000VNĐ

Liên hệ:

Mô tả

Product Description

S100-02S41-0B0000

Nidec Control Techniques Commander S100

Commander S100 230Vac Single Phase input / 230Vac 3 Phase Output

Max Cont Output Current (HP): Normal Duty – 3.5A (0.75HP), Heavy Duty – 3.5A (0.75HP)

Drives include EMC filters rated in accordance with IEC 61800-3, category C1

Commander S Micro AC Drive

0.25 to 5 HP (0.18 to 4 kW)
1Φ 115 & 208-230 V, 3Φ 208-230 & 380-480 V

Making simple applications, simple.

Take charge of motor control and energy savings with the latest addition to the Control Techniques portfolio. With a feature set optimized for simple applications, Commander S provides a cost-effective solution for installations that require plug and play convenience straight from the box.

Commander S is the first drive to come with an app interface as a standard feature. The MARSHAL App is our revolutionary way to interface with the drive covering commissioning, monitoring, diagnostics and support.

Marshal: your drive expert in the field

Revolutionize the way you interface with your drive

Control Techniques has a long tradition of challenging the status-quo with innovative ideas and making a profound impact in the drives industry. And we’ve done it again with MARSHAL: Control Techniques is the 1st drive supplier to implement NFC technology as standard on a drive and offer the MARSHAL App interface at no extra cost.

MARSHAL is your drive expert in the field. This rich content interface means you can commission, clone, diagnose system issues and monitor the drive in just a few screen taps.

Download Control Techniques Mobile Applications on Google Play

WANT TO KNOW MORE ABOUT MARSHAL? CLICK HERE.

	Easy To Install The sleek curved design of Commander S optimizes component layout for a small footprint and easy access to terminals. The click-on/click-off DIN rail mount makes installation remarkably easy.
	Easy To Use Using our new Marshal app (Android/iOS) your drive can be configured in under 60 seconds.
	Reliable Durability is at the core of Commander S design, guaranteeing performance throughout its whole lifetime.
	Cost Effective Equipped with unique features designed to save you time, energy and money.

Making Simple Applications, Simple.

	Flow Control Applications Fans, Pumps, and Compressors
Improved energy eﬃciency during periods of low demand PID functionality makes advanced control easy and eﬃcient without the need of an external controller Easily avoid equipment resonant frequencies and reduce high vibration levels using the skip frequency Catch an already spinning motor to reduce start-up time and increase productivity Motor thermal protection prevents overheating of the motor during operation Fire mode maximizes availability of a building’s smoke extraction system in the event of a ﬁre. Once activated, the drive will run until failure
	Moving Applications Conveyors, Treadmills, Automatic Doors & Barriers
Reliable speed control with onboard communications S-ramp acceleration / deceleration profiling provides smooth speed transitions minimizing machine jerk Linear V to F with a controllable boost to get the machine running Drive overload capacity up to 150% for rapid acceleration or load changes DC braking with stop indication used to stop the motor quickly
	Processing Applications Mixers, Crushers, Agitators, Centrifuges, Kneaders, Spinning & Braiding Machines for Textile
Ease of integration to external PLC or other management systems with on board communications Stability optimizer for improved motor control Resistance compensation for excellent torque performance Built-in EMC filter effectively reduces electromagnetic interference

Power & Control

Voltage	1Φ AC 115 & 230 V 3Φ AC 230 & 460 V
Power Range	0.25 to 5 hp / 0.18 to 4 kW
Duty Rating	Heavy Duty
Input Frequency	50/60 Hz
Output Frequency	0 to 300 Hz
Switching Frequency	4 kHz and 12 kHz
Motor Control	Linear V to F , Square V to F, Resistance, Compensation
Stopping Modes	Coast, Ramp, Ramp & DC Injection Braking, DC Braking with 0 Hz detect, Timed DC Braking, Distance Stop

Communications

RJ45 for Modbus RTU
NFC for app interface

Inputs & Outputs

Analogue	2 x Analog inputs 1 x Analog output
Digital	4 x Digital inputs 1 x Digital input / output
Relay	1 x Relay (single pole, double throw relay)

Standards

Approvals	CE, UKCA, cULus, C-Tick, EAC, KC
Product Safety Standards	IEC/EN/KN/UL 61800-5-1, CSA C22.2 No.274, GB12668.501-2013
Emission Compliance	C3 internal EMC filters C1 & C2 with external EMC filters C1 internal EMC filters, for selected 1Φ 230 V variants

Mounting & Environment

IP Rating	IP20
Mounting	Click on/click off DIN rail mount Screw mount 0 mm side by side
Ambient Temperature	Operation without de-rate: 14°F to 104°F (-10°C to 40°C) Operation with de-rate: 14°F to 140°F (-10°C to 60°C) Storage: -40°F to 140°F (-40°C to 60°C)

Remote Interface

	Remote Keypad IP66 Remote mountable, intuitive plain text, multilingual LCD keypad for rapid setup and helpful diagnostics from the outside of a panel. Meets IP66 (NEMA 4).
	HMI The MCh panels and MChMobile Software have been designed for the easy development of HMI applications including factory and building automation.

Optional Extras

	Cable Management Bracket Use of the optional cable management bracket allows the wiring cables to be neatly secured under the drive.
	Fiber Filter The optional fiber filter allows the drive to operate efficiently even in environments prone to airborne fibers (e.g.: textile applications). Filter cleaning can be incorporated into the preventative maintenance cycle, lowering the risk of an unplanned outage.
	RS485 Cable The USB communications cable allows the drive to connect to a PC for use with Commander’s PC tools.

App interface

Marshal app

Marshal is your drive expert in the field. This rich content interface means you can commission, clone, diagnose system issues and monitor the drive in just a few screen taps.

Download Control Techniques Mobile Applications on Google Play

Intuitive commissioning software

Connect – Commissioning tool

Based on Control Techniques’ 25 years’ experience, Connect is our latest drive configuration tool for commissioning, optimizing and monitoring drive/system performance.

DOWNLOAD

Product Portal

Product Portal

Our product portal provides you with detailed product specifications, datasheets, 3D CAD models and product configurator.

GO TO PORTAL
